12v-24-volt-8amp-pwm-rotary-led-dimmer-controller

12-24 volt 8Amp PWM Rotary Dimmer Knob LED Dimmer Switch

  • 12-24V DC
  • 8 amp
  • 1 Channel for single color led strips
  • 2 years’ warranty
  • CE/RoHS approved for EU market

Single Color Knob Rotary LED Dimmer Switch
Single color dimmer can achieve stepless dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.



Most important,I have to point out ” we always keep the better quality components raw material to keep a stable quality to look for long-term relationship with our clients”.



Product Feature

  • Adopt the knob control manner
  • According to actual needs, users can transfer the light to the appropriate brightness.
  • Output one channel, the max current is 8A.
  • 2-year warranty.



Technical Parameters

Working temperature -20-60℃
Supply voltage DC5V, 12V~24V optional
0utput 1 channel
External dimension L89*W59*H35 mm
Packing size L106*W64*H56 mm
Net weight 80g
Gross weight 90g
Static power consumption <1W
Output current <8A
Output power 5V:<40W,  12V:<96W,  24V:<192W

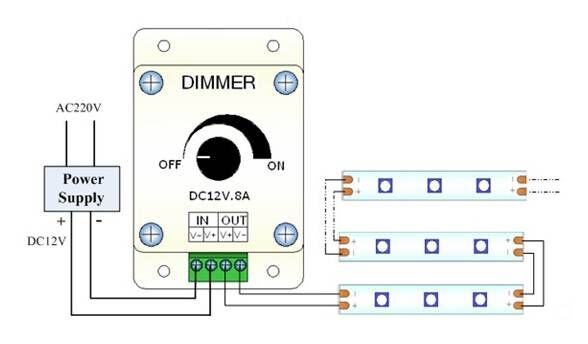

Wiring Diagram:

how to connect led dimmer with led strip light

how to connect led dimmer with led strip light
