12V 12A CT LED Controller with Touch Remote

12-24V 12A Color Tempeature Adjustable LED Dimmer Controller

  • 12-24V DC
  • 6A* 2 Channels
  • Used for Dual white Led Strip Light
  • 2 Years’ warranty
  • CE/RoHS approved

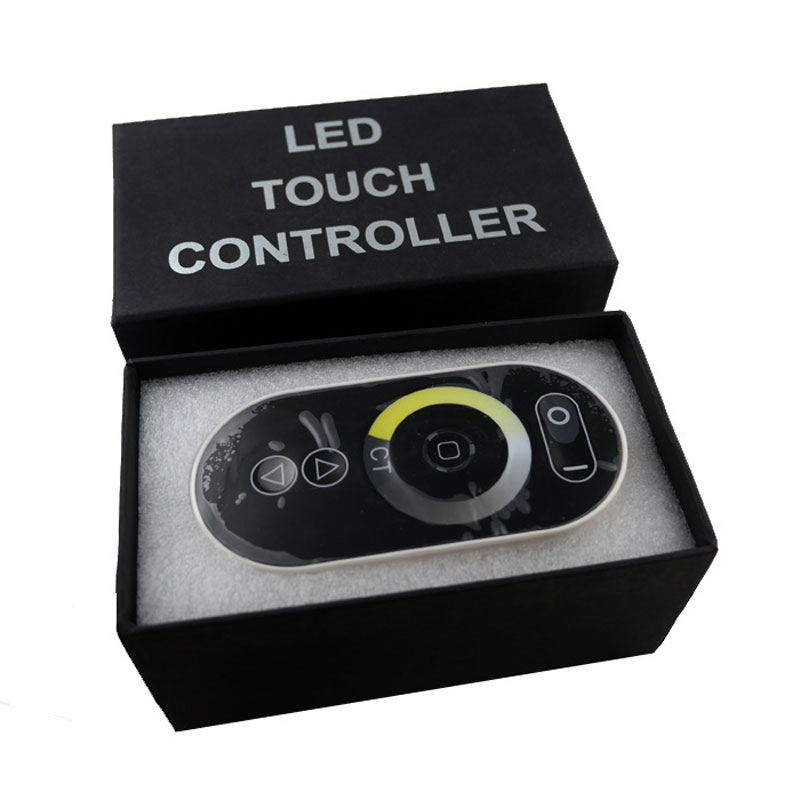

RF Touch Color Temperature Controller

MJJC-SZ100-CT, adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for color temperature adjustable led strip. Adopt full touch RF remote control. 5 function buttons and 1 color temperature ring in the center, all buttons are in the touch form, and the color ring has 128 levels in different color temperature value. Particularly, there is a sense light in the remote control center. It shows the exactly color which has been touched. As the led strip is the same. Further, there are 9 dynamic modes in the mode button, and the speed is adjustable. In order to achieve the synchronization of more lamps, RGB Amplifier can be used.



Product Feature



  • Adopt PWM technology, and the color temperature ring in the center has 128 levels in different color temperature value, smooth and flicker-free.
  • Output two channels ,each allow a maximum current of 6A.
  • Adopt RF remote control technology and full touch design, RF frequency: 433.92MHz.
  • Designing for: LED constant voltage double-white LED lights.
  • In order to achieve the synchronization of more lamps, RGB Amplifier can be used.
  • 2-year warranty.



Technical Parameters

Working temperature -20-60℃
Supply voltage DC12V~24V
Output 2 channels
Connecting mode common anode
External dimension L127*W41*H32 (mm)
Packing size L147*W85*H73 (mm)
Net weight 280g
Gross weight 340g
Output gray 256 levels
Output current <6A(each channel)
Output power 12V:<144W,  24V:<288W
Frequency of RF remote control 433.92MHz


Interface Specifications

connect to Warm White + Cool White Led Strip

connect to Warm White + Cool White Led Strip

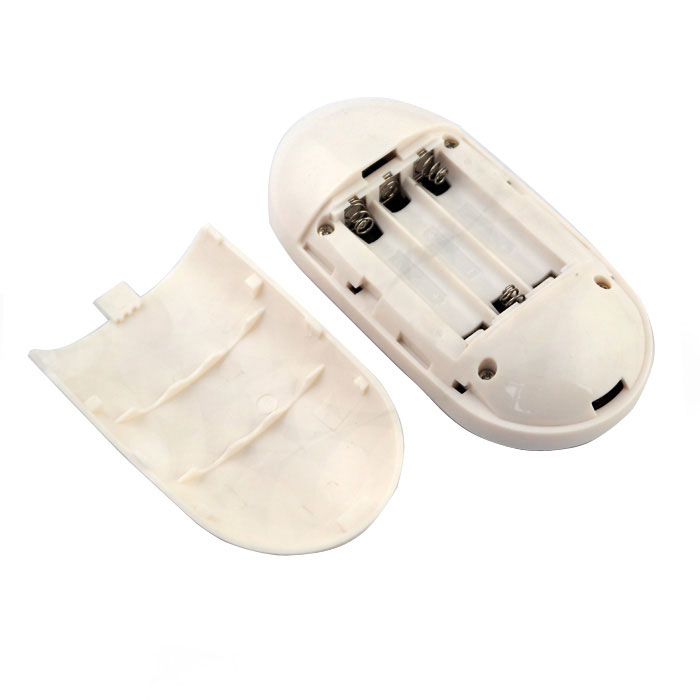

Color Temperature Adjustable Remote

Color Temperature Adjustable Remote



The function of each button as below:

Press Key Instruction Remarks
ON/OFF ON or OFF in any time
Pause Pause or Continue
Mode The mode will move to next, when touch the key each time 9 modes in total.
Speed/Brightness + The Speed/Brightness will +1, when  touch the key each time Speed for dynamic modes, Brightness for static modes.
Speed/Brightness – The Speed/Brightness will -1, when touch the key each time Speed for dynamic modes, Brightness for static modes.
Color Ring Touch any color temperature which you want





9 modes in total as below:

NO Patterns Remarks
1 Static warm white and cool white Brightness is adjustable, speed is unadjustable
2 Warm white and cool white flash Speed is adjustable, brightness is unadjustable
3 Warm white and cool white fade
4 Warm →cool flash
5 Warm →cool fade
6 Static warm white,cool white flash
7 Static warm white,cool white fade
8 Static cool white,warm white flash
9 Static cool white,warm white fade



Two kinds of wiring diagrams:

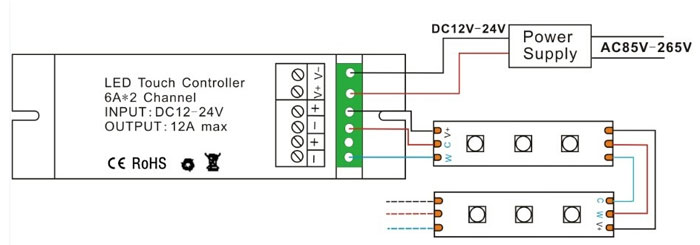

color temperature led controller connection to dual white led strip light

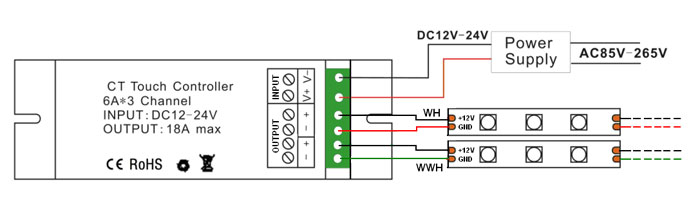

wiring diagram 1 of ct led controller
