Aluminium shell IR 24 Keys RGB LED Controller 12V 12A 144W Wireless Remote

12V 24V 12A 24 Keys IR RGB LED Controller

  • 12-24V DC
  • 4A*3Channels  12A
  • IR 24 Keys Remote for 20 modes
  • Stable quality to conclude the long term cooperation
  • CE/RoHS

24-Key Aluminum Infrared IR RGB LED Controller
MJJC-IRL24A, adopts the advanced micro control unit, it is used for controlling a variety of LED lamps. For instance, point source of light, flexible light strip and so on; it has many advantages such as low price, easy connection and simply to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. In addition, customers can adjust their light color as they like.





Product Feature

  • Adopts the advanced micro control unit.

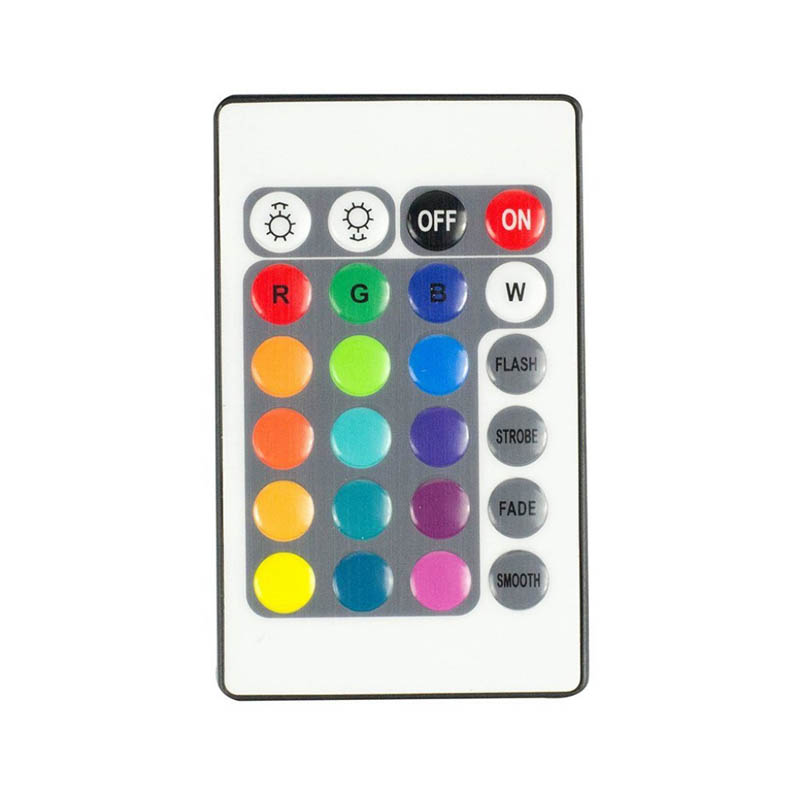

  • There is a IR remote touch control 24 keys, you could adjust brightness, static color choices and various dynamic changes in lighting effects.
  • There are 20 modes in total, including 16 static and 4 dynamic changes; The brightness of static color and the speed of dynamic changes are adjustable.
  • Output to RGB three channel, each allow a maximum current of 4A.
  • Aluminum case, better heat dissipation.
  • 2 year warranty.







Technical Parameters

Working temperature -20-60℃
Supply voltage DC5V, 12V~24V optional
0utput 3 channels
Connecting mode common anode
External dimension L130*W64*H24 mm
Packing size L137*W80*H54mm
Net weight 185g
Gross weight 215g
Static power consumption <1W
Output current <4A(each channel)
Output power 5V:<60W,  12V:<144W,  24V:<288W


Modes of 24 Keys

Modes of IR 24 Keys Remote Controller

Modes of IR 24 Keys Remote Controller





How to install LED Strip Light to the RGB LED Controller ?

How to install RGB LED Strip Light to the controller ?

How to install RGB LED Strip Light to the controller ?
