MJJC-IRBT001-CCT Dual White LED Controller

2016 MJJC New CT LED Controller 12-24V DC (Warm White+Cool White)

  • New Designed Remote Control
  • Can be customized as your request
  • 2 Years’ warranty
  • CE/RoHS


IR BT Led Controller-CCT

MJJC-IRBT001-CCT, adopts the advanced micro control unit, it is used for controlling constant voltage CW+WW LED lamps. For instance, point source of light, flexible light strip and so on; Belong to low-voltage DC power input and output with four interfaces, including V+ is the common positive interfaces, the other two for the negative interface. Meanwhile, you can turn on/off, adjust brightness/color-temperature for different lighting effects through infrared 14keys remote control.


Product Features

  • Designed for CW+WW constant voltage LED lights, Working voltage DC12-24V.
  • Three channels output, Max. load current: 2CH*2A; Max. load power: 48W/12V; 96W/24V.
  • Adopts IR 14keys remote control with fashion appearance, distance up to 10 meters in the open air.
  • Memory function, each time power-on reserve the mode which stop in the last power-down;
  • 7 modes in total, including 3 static colors and 4 dynamic changes.
  • The brightness of static color is adjustable, 256 levels in total; the speed of dynamic changes is adjustable, 100 levels in total.
  • Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
  • Warranty of this product is 2 years, exclude the artificial situation of damaged or overload working.


Technical Parameters


Working temperature -20-60℃ Supply voltage DC12V-24V
Static power consumption <1W Connecting mode common anode
Grayscale 256 levels Speed stage 100 grade
External dimension L61*W35*H22 mm Packing size L150*W65*H40mm
Net weight 90g Gross weight 110g
Output 2 channels Max. Output current 2A*2CH
Mode 7 Remote distance Up to 10M
Max. Output power 12V:48W, 24V:96W Memory function Support


Remote control:

Working temperature -15℃~60℃ Supply voltage DC3V(CR2032battery)
Static current <3uA Working current <20mA
Net weight 50g Carrier frequency 38.0KHZ±0.76KHZ
External dimension L138*W40*H10 mm Remote distance 10M

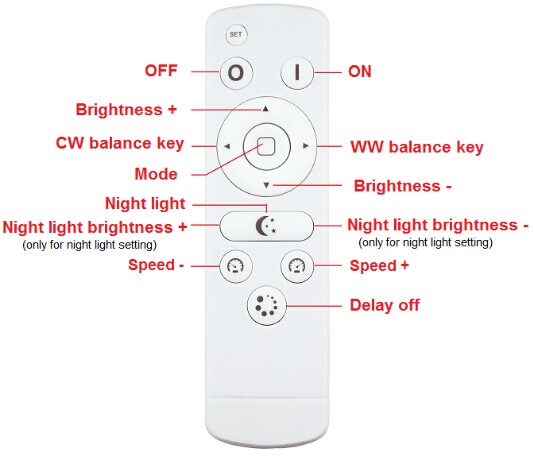

CT Remote

Name Description
ON Turn on
OFF Turn off
Brightness + The brightness will add 1 level after each time press. Long-press can get fast adjusting.
Brightness – The brightness will reduce 1 level after each time press. Long-press can get fast adjusting.
CW balance key Balance to cool white. Long-press can get fast adjusting.
WW balance key Balance to warm white. Long-press can get fast adjusting.
Mode Hot key for 3 CCT full-light: 100% CW, 100% WW, 100%CW+100%WW, and 4 dynamic modes.
Night light Press the button go to night light mode(night light Setting:Under night light mode, press “Set button” and hold on for 10 seconds will go into the night light setting, press the left button to down the brightness, press the right button to up the brightness. Adjustable range: 1%-10%.)
Speed + Add the speed of dynamic mode. Long-press can get fast adjusting.
Speed – Reduce the speed of dynamic mode. Long-press can get fast adjusting.
Delay off The light will be delay off in 30 seconds.
