MJJC-IRBT001-RGB LED Controller 12V

2016 New RGB LED Strip Light Controller 12-24V 6A(3*2A)

  • New Designed Remote
  • 2 Years’ warranty
  • CE,RoHS
  • We can print your LOGO on the surface of the remote control

Model: MJJC-IRBT001-RGB

IR BT remote Led Controller-RGB

MJJC-IRBT001-RGB, adopts the advanced micro control unit, it is used for controlling constant voltage RGB LED lamps. For instance, point source of light, flexible light strip and so on; Belong to low-voltage DC power input and output with four interfaces, including + V is extremely common interfaces, the other three for the RGB control interface. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared 14keys remote control.



Product Features

  • Designed for RGB constant voltage LED lights, Working voltage DC12-24V.
  • Three channels output, Max. load current: 3CH*2A; Max. load power: 72W/12V; 144W/24V.
  • Adopts IR 14keys remote control with fashion appearance, distance up to 10 meters in the open air.
  • Memory function, each time power-on reserve the mode which stop in the last power-down;
  • 26 modes in total, including 16 static colors and 10 dynamic changes.
  • The brightness of static color is adjustable, 256 levels in total; the speed of dynamic changes is adjustable, 100 levels in total.
  • Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
  • Warranty of this product is 2 years, exclude the artificial situation of damaged or overload working.






Technical Parameters

 Controller:

Working temperature -20-60℃ Supply voltage DC12V-24V
Static power consumption <1W Connecting mode common anode
Grayscale 256 levels Speed stage 100 grade
External dimension L61*W35*H22 mm Packing size L150*W65*H40mm
Net weight 90g Gross weight 110g
Output 3 channels Max. Output current 2A*3CH
Mode 26 Remote distance Up to 10M
Max. Output power 12V:72W, 24V:144W Memory function Support



Remote control:

Working temperature -15℃~60℃ Supply voltage DC3V(CR2032battery)
Static current <3uA Work current <20mA
Net weight 50g Carrier frequency 38.0KHZ±0.76KHZ
External dimension L138*W40*H10 mm Remote distance 10M

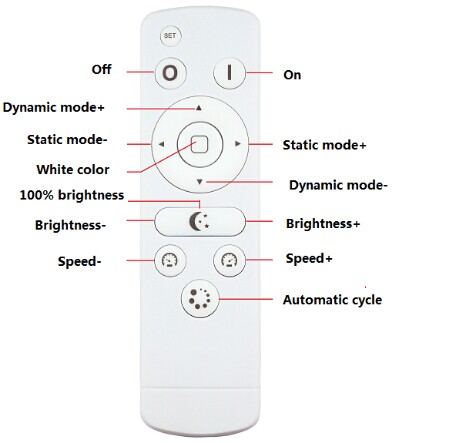

RGB Remote

Static mode

Name of key Function description
on Turn on the controller output
off Turn off the controller output
Dynamic mode+ For dynamic mode selection(9-17), each time pressing dynamic mode +1
Dynamic mode- For dynamic mode selection(9-17), each time pressing dynamic mode -1
Static mode+ For static color selection(1-7), each time pressing static mode+1
Static mode- For static color selection(1-7), each time pressing static mode-1
White color White color hot key(mode 8)
100% brightness press this key goes to 100% brightness for the present color
Brightness+ Each time pressing brightness +1, 256 levels in total, long-pressing can get fast adjustment
Brightness- Each time pressing brightness -1, 256 levels in total, long-pressing can get fast adjustment
Speed+ Each time pressing speed +1, 100 levels in total, long-pressing can get fast adjustment
Speed- Each time pressing speed -1, 100 levels in total, long-pressing can get fast adjustment
Automatic cycle All dynamic modes are automatically circulating in order









Standard color changes as follows:

No Patterns Remarks
1 Static red Brightness is adjustable, speed is unadjustable
2 Static green
3 Static blue
4 Static orange
5 Static yellow
6 Static purple
7 Static cyan
8 Static white
9 White flash Speed / brightness are adjustable
10 White breathe Speed is adjustable, brightness is unadjustable
11 3 color jumpy Speed / brightness are adjustable
12 7 color jumpy
13 3 color fade Speed is adjustable, brightness is unadjustable
14 7 color fade
15 R/G cross fade
16 R/B cross fade
17 G/B cross fade
18 9-17Autonamic cycle
