S1-B AC Triac LED Dimmer 220V 230V 110V for Dimmable LED Bulb Lamp
● AC phase-cut RF dimmer with push-dim function.
● To dim and switch single color dimmable LED lamps or drivers, traditional incandescent and halogen lights.
● Suitable to insert standard panel bottom box.

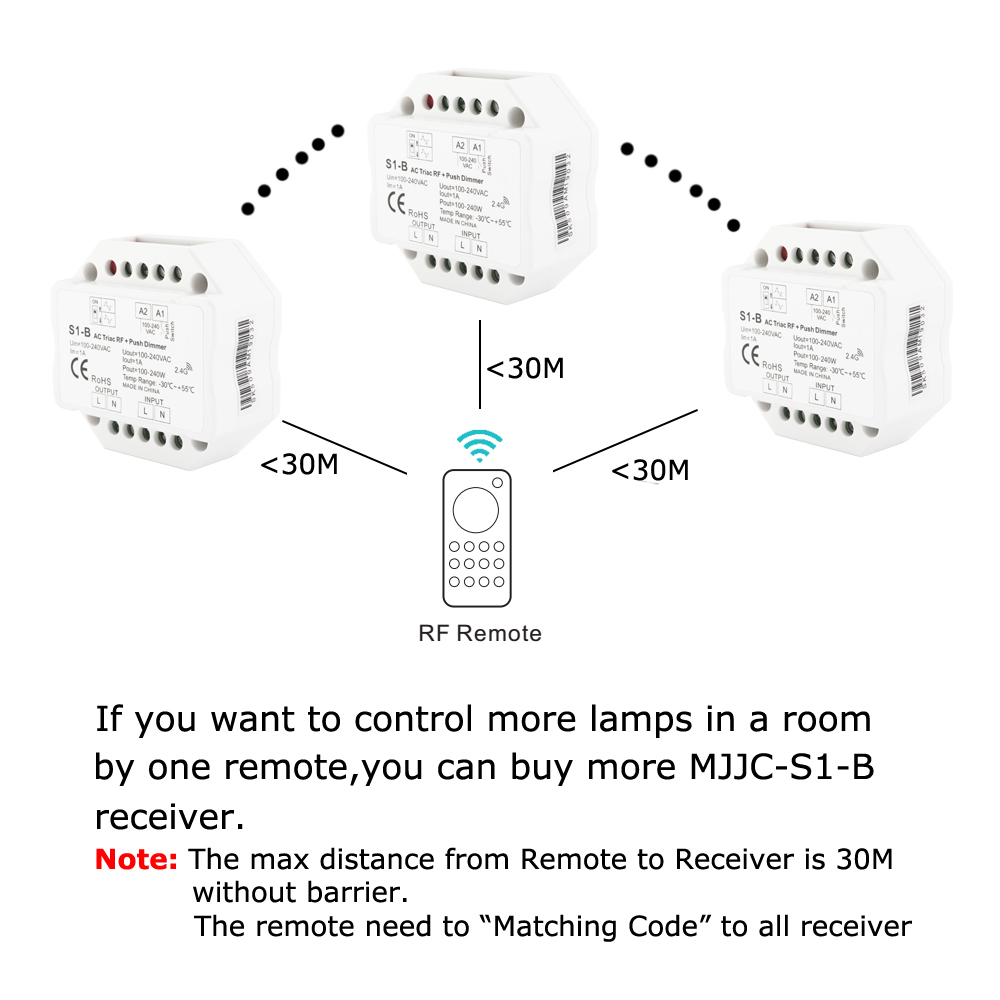

● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● One RF dimmer can accept up to 10 remote control.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Great compatibility with a variety of dimming remote.
- Input Voltage:110-240V AC
- Output Voltage: 110-240V AC
- Max load current :1.0A
- Output gray: 256 levels
- Frequency of RF remote control: 2.4G MHz
- RF Remote Distance: 30M
- Net Weight: 48g/pc
- Color: White Body
- Product size:(Approx) L52x W52x H26mm
Triac LED Dimmer 220V 230V 110V AC Wireless RF Dimmable Push Switch with 2.4G Remote Controller for Single Color LED Bulb Lamps
(Receiver) Specifications:
Product Name:2.4G Wireless RF Triac LED Dimmer with Push Dimmable Function
Receiver : MJJC-S1-B

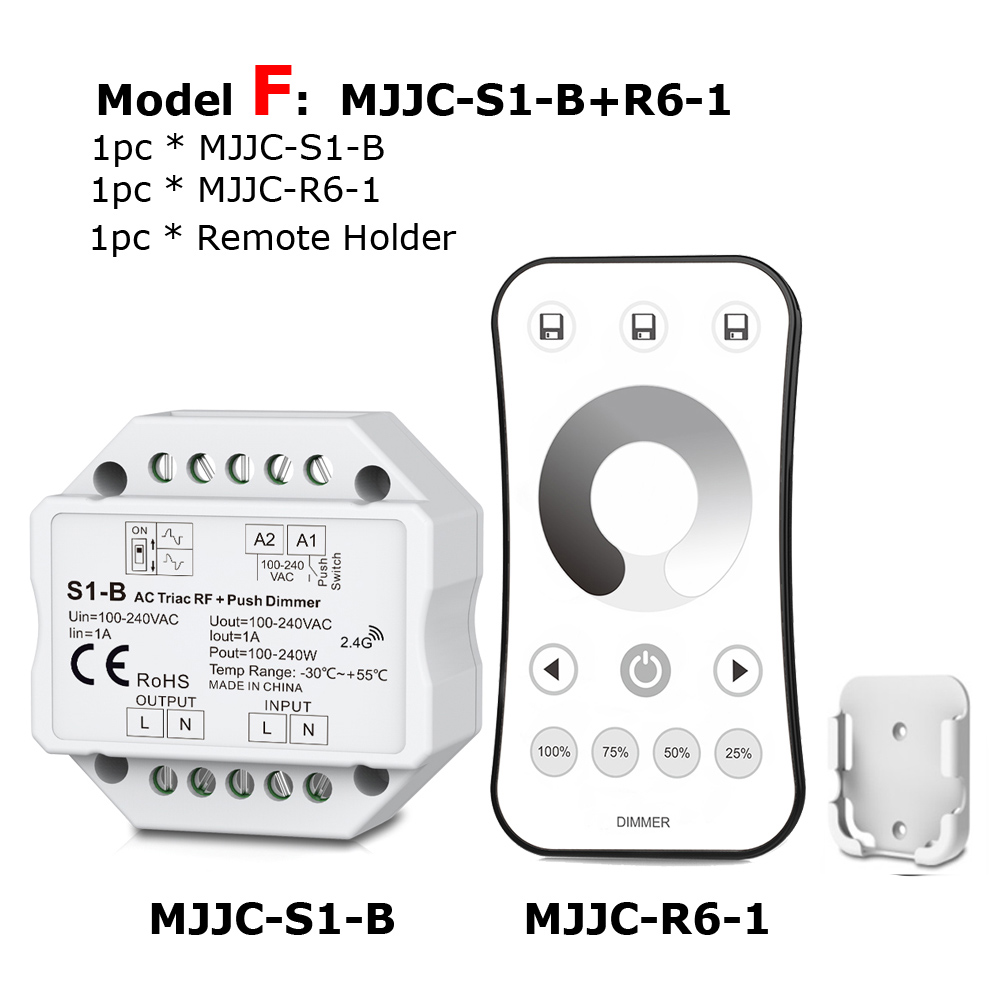

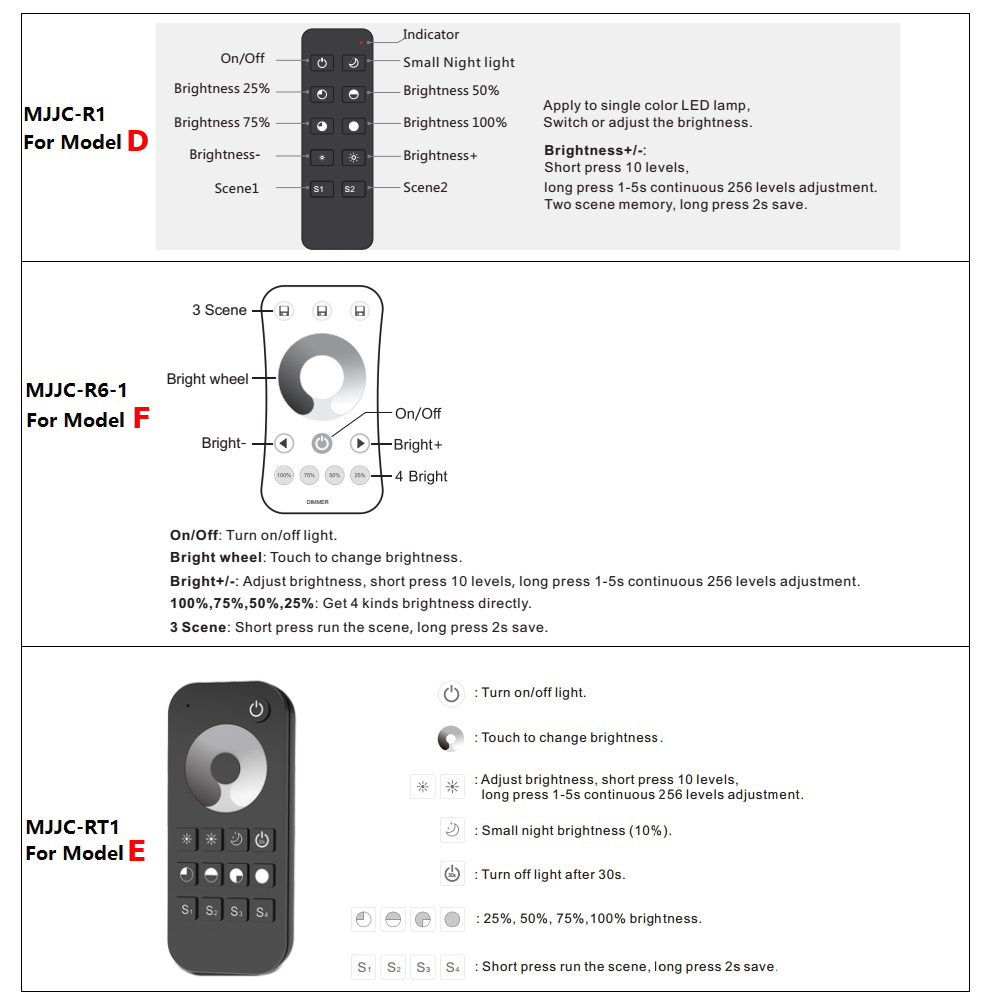

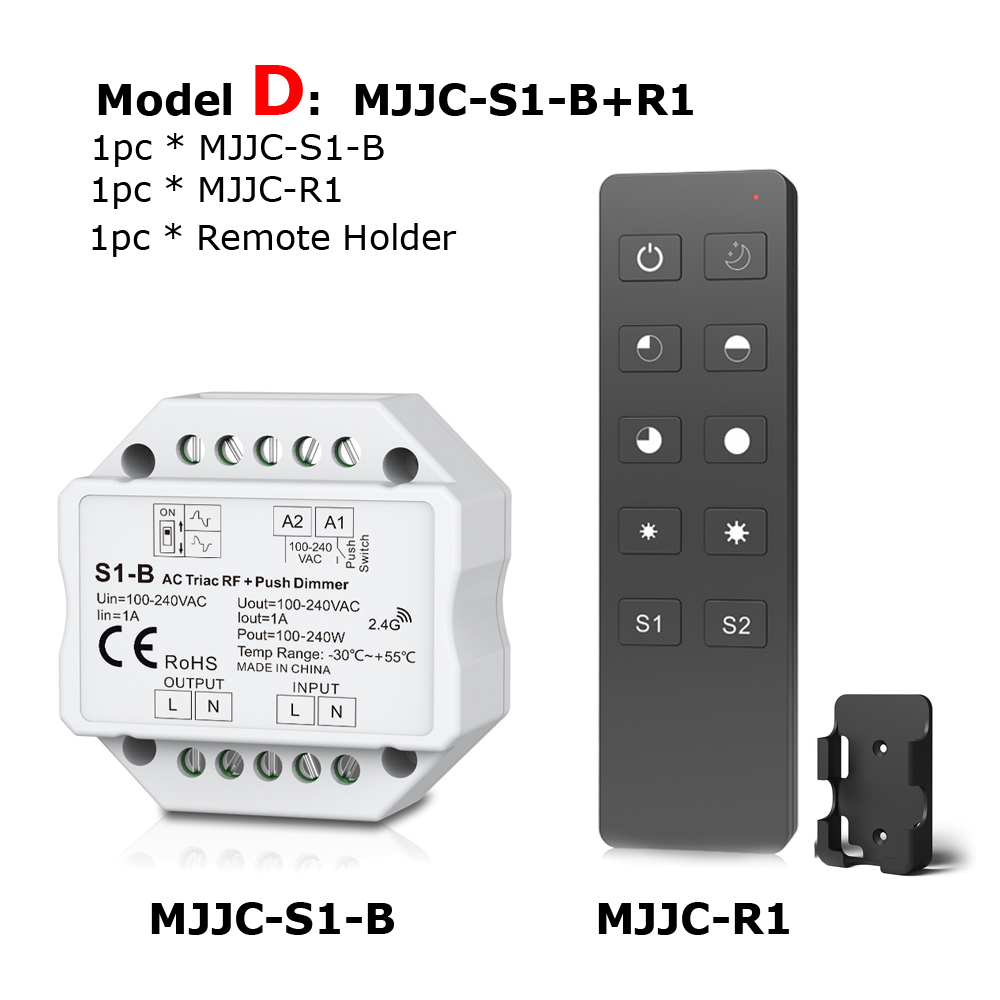

(Receiver and Sender): Model D:,MJJC-S1-B+R1; Model F: MJJC-S1-B+R6-1; Model E: MJJC-S1-B+RT1
Input Voltage: 110V 220V 230V 240V AC
Output Voltage: 110V 220V 230V 240V AC
Working Temperature: -20-60centi-degree
Max load current :1.0A
Max Power Output: 100-240W
Output gray: 256 levels
Frequency of RF remote control: 2.4G MHz
RF Remote Distance: 30M
Net Weight: 48g/pc
Color: White Body
Product size:(Approx) L52x W52x H26mm
