MJJC Triac LED Dimmer 220V 230V 110V AC 2.4G Wireless RF KS Dimmer

Triac LED Dimmer 220V 230V 110V AC Wireless RF Dimmable Knob Light Switch EU With 2.4G Remote Controller for LED Bulb Lamps KS

(Receiver) Specifications:

Product Name:2.4G Wireless RF Triac LED Dimmer with Knob Dimmable Function

Receiver ： MJJC-KS

(Receiver and Sender):

Model H:，MJJC-KS+R1; Model G: MJJC-KS+R6-1; Model K: MJJC-KS+RT1; Model H: MJJC-KS+RS1

● Input voltage: AC100-240V

● Output voltage: AC100-240V

● Output current: Max 1A

● Remote distance: 30m

● Work temperature: -30℃~55℃

● Product size: L86×W86×H48.5mm

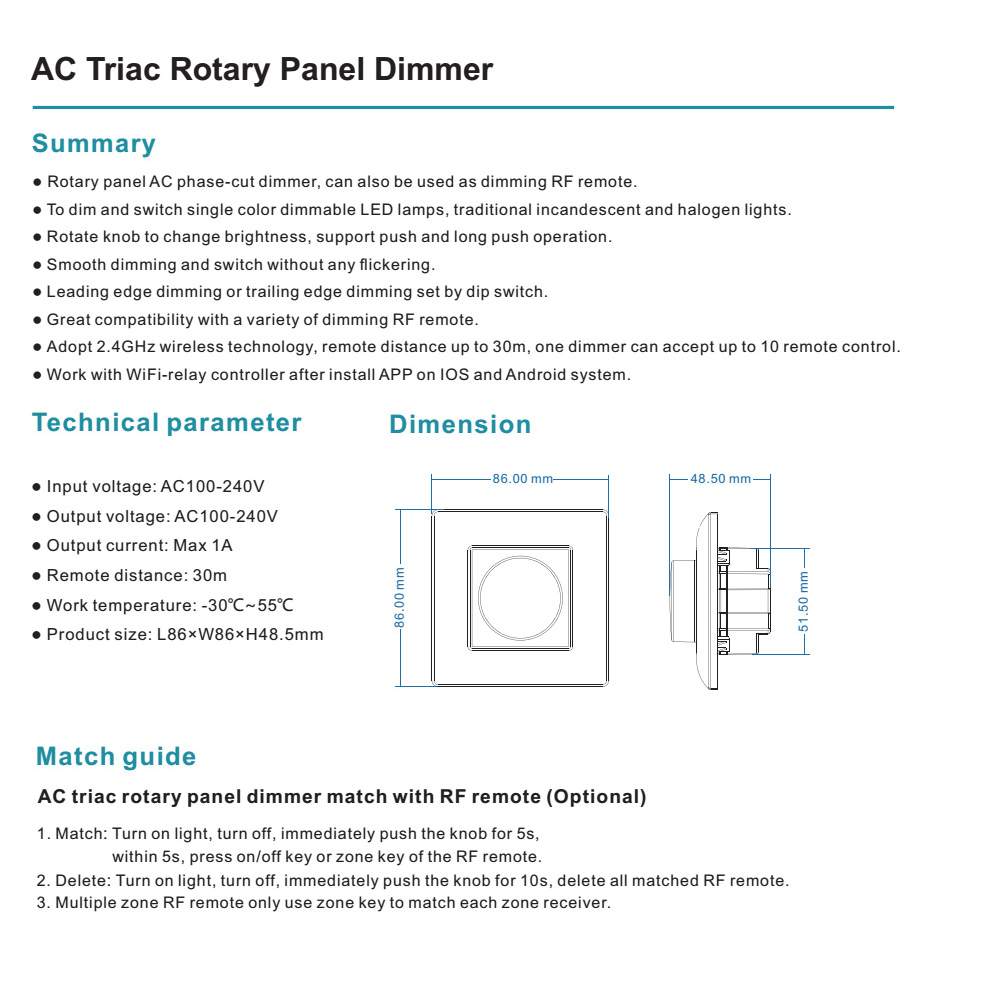

Match Guide:

AC triac rotary panel dimmer match with RF remote (Optional)

1. Match: Turn on light, turn off, immediately push the knob for 5s,

within 5s, press on/off key or zone key of the RF remote.

2. Delete: Turn on light, turn off, immediately push the knob for 10s, delete all matched RF remote.

3. Multiple zone RF remote only use zone key to match each zone receiver.

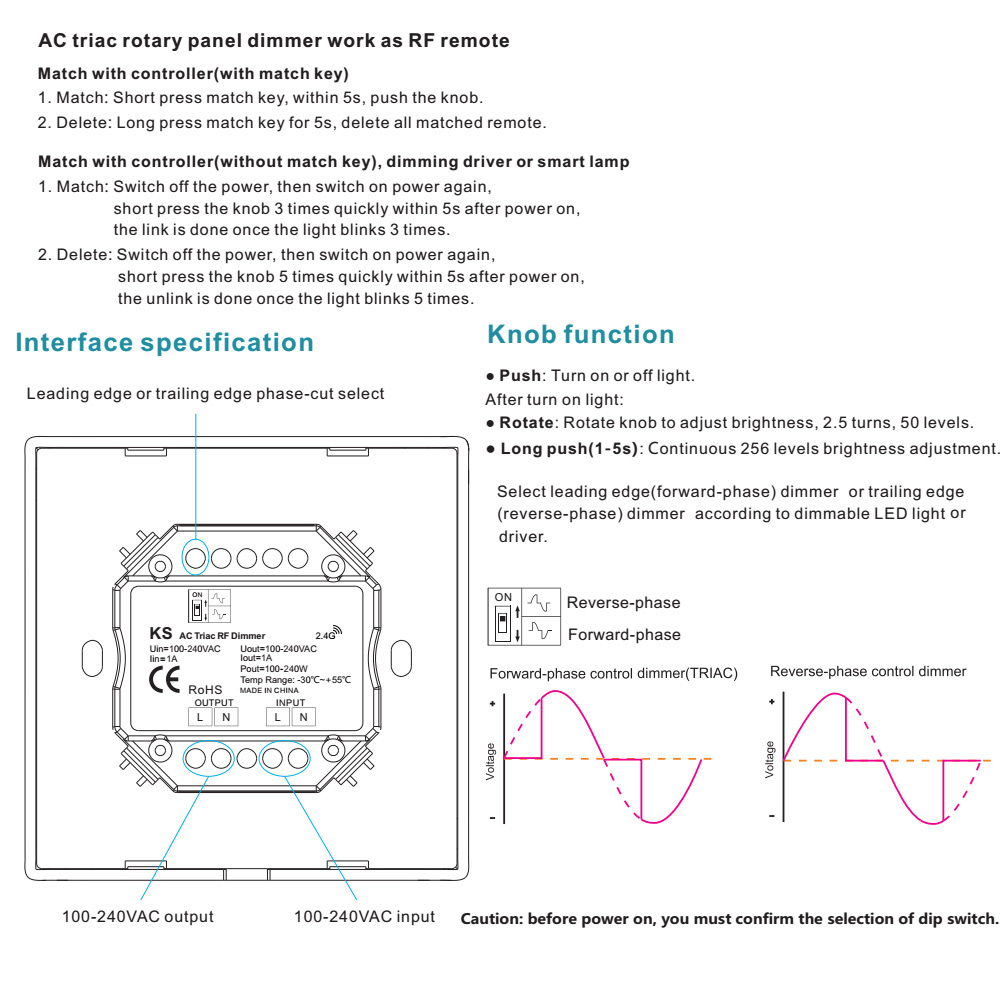

AC triac rotary panel dimmer work as RF remote

Match with controller(with match key)

1. Match: Short press match key, within 5s, push the knob.

2. Delete: Long press match key for 5s, delete all matched remote.

Match with controller(without match key), dimming driver or smart lamp

1. Match: Switch off the power, then switch on power again,

short press the knob 3 times quickly within 5s after power on,

the link is done once the light blinks 3 times.

2. Delete: Switch off the power, then switch on power again,

short press the knob 5 times quickly within 5s after power on,

the unlink is done once the light blinks 5 times

(Sender/Remote Control)Specifications & Functions:

Output Signal: RF (2.4GHz)

Working Voltage: 3V DC (CR2032 Button Cell Battery) , 2*AAA Batteries (MJJC-RT1/RT6)

Standby Time: 12 months

Remote Distance: 30M

Dimension: L135 x W40 x H11mm(MJJC-R1); L107 x W58.5 x H9mm (MJJC-R6-1/MJJC-R6) L122 x W53 x H17.5mm(MJJC-RT1/RT6); L155 x W43 x H17.5mm (MJJC-RS1)

Weight:41g/pc(MJJC-R1) ;  35g/pc (MJJC-R6-1/R6)  ; 135g/pc (MJJC-RT1/RT6); 165g/pc (MJJC-RS1)

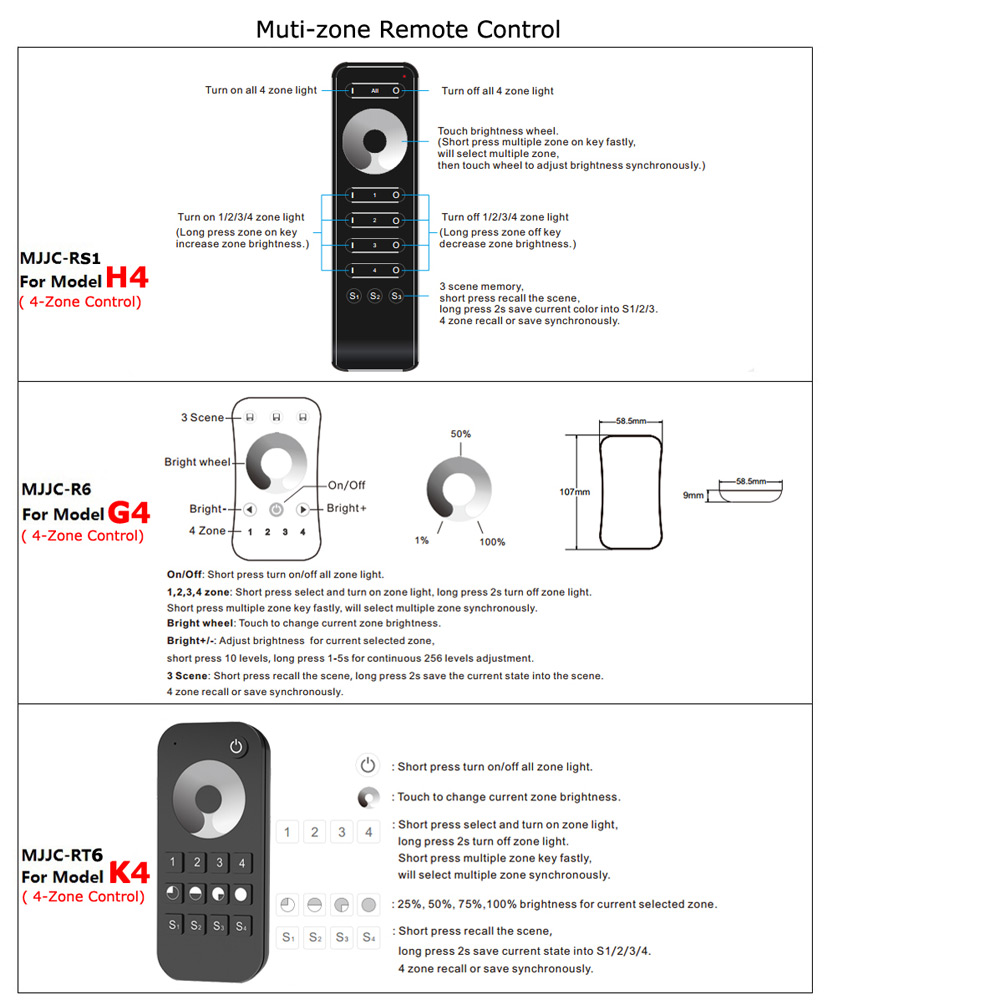

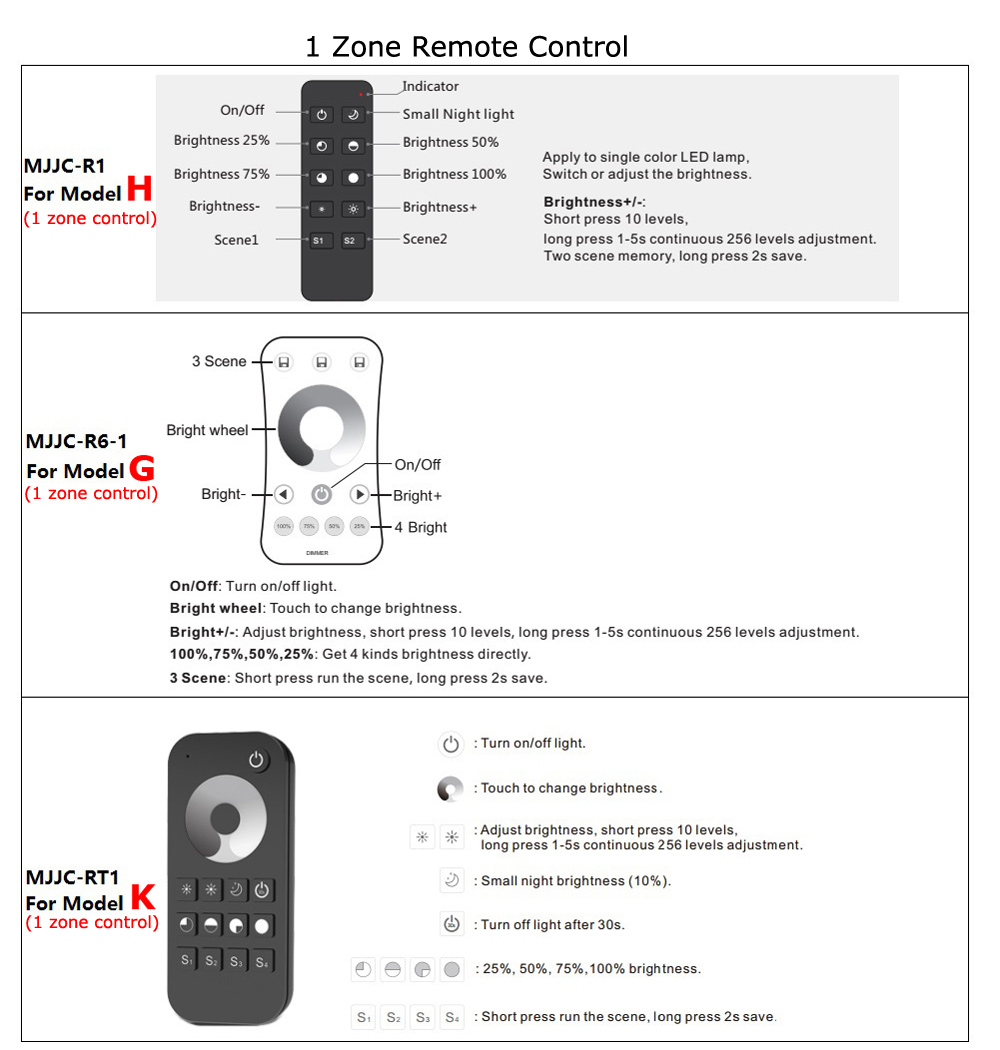

Dimmer LED 220V with 1 Zone, 4 Zone RF Remote Control

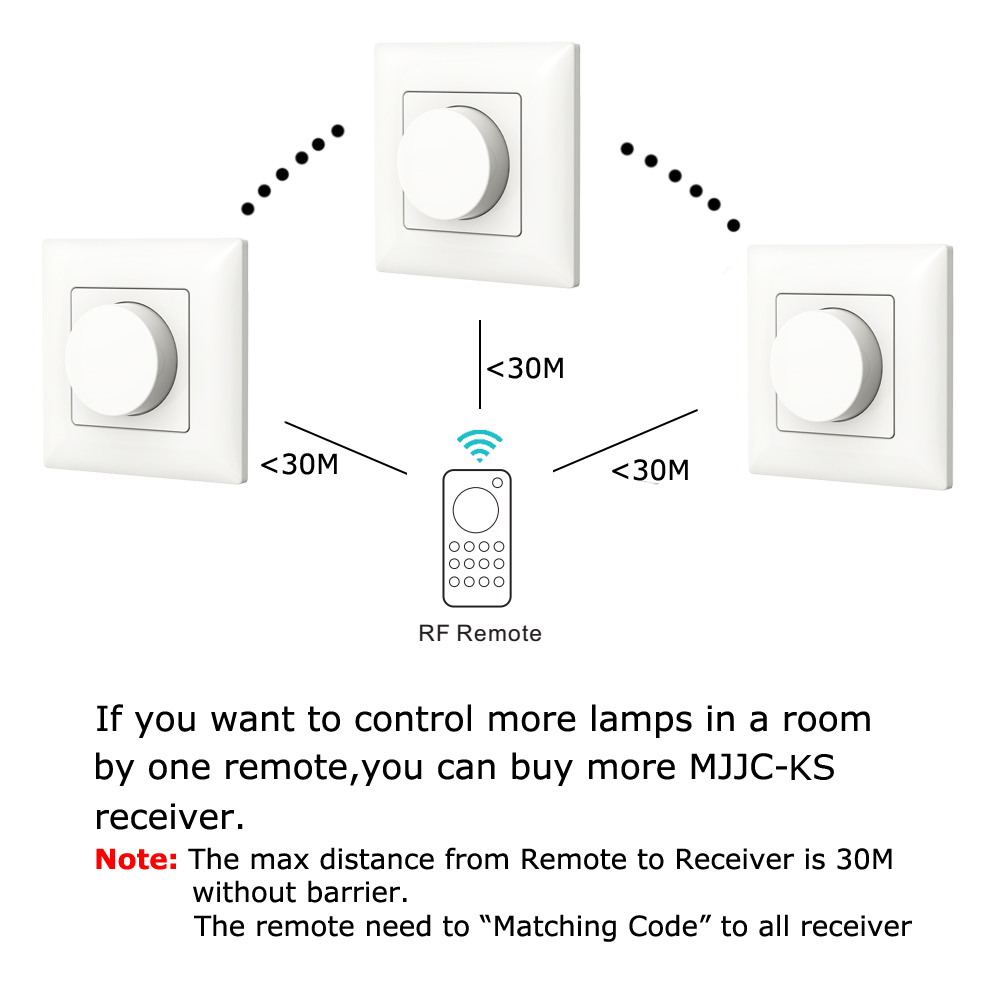

You can realize 1 remote to control more KS dimmer, synchronously and independently control solution.

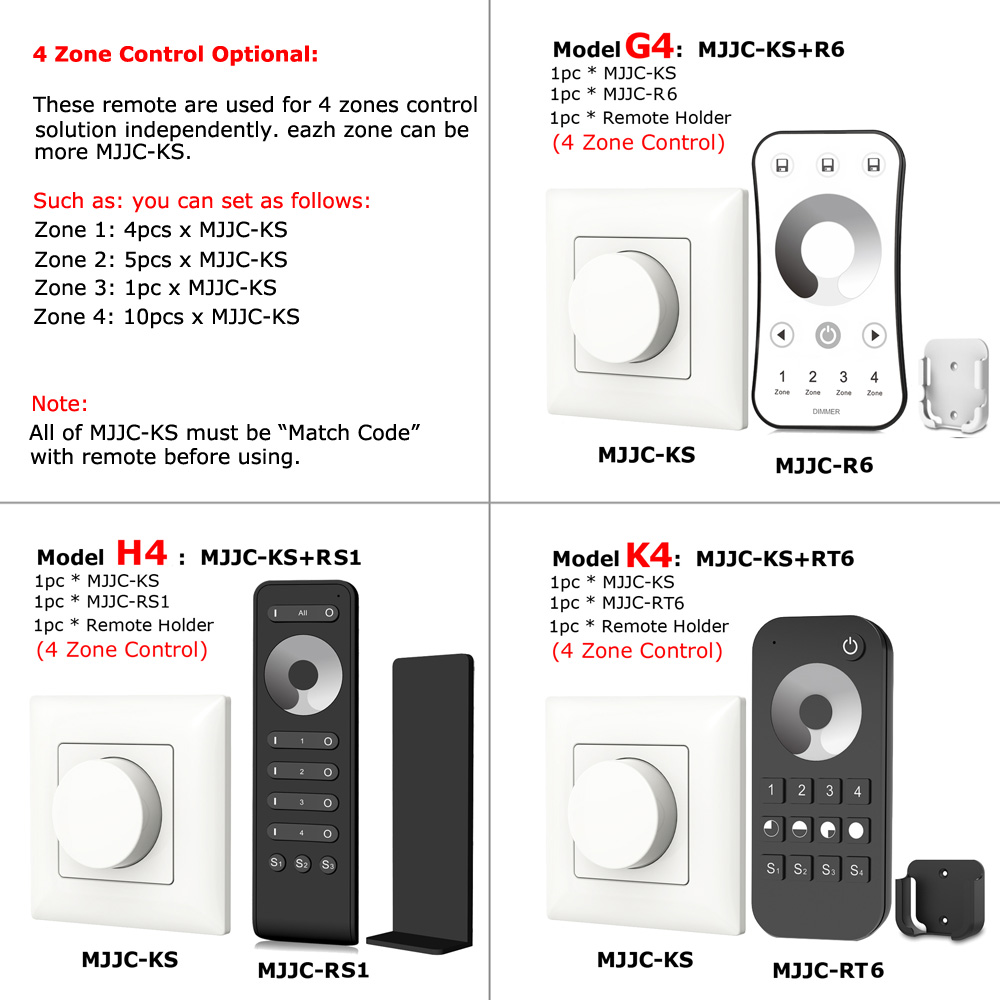

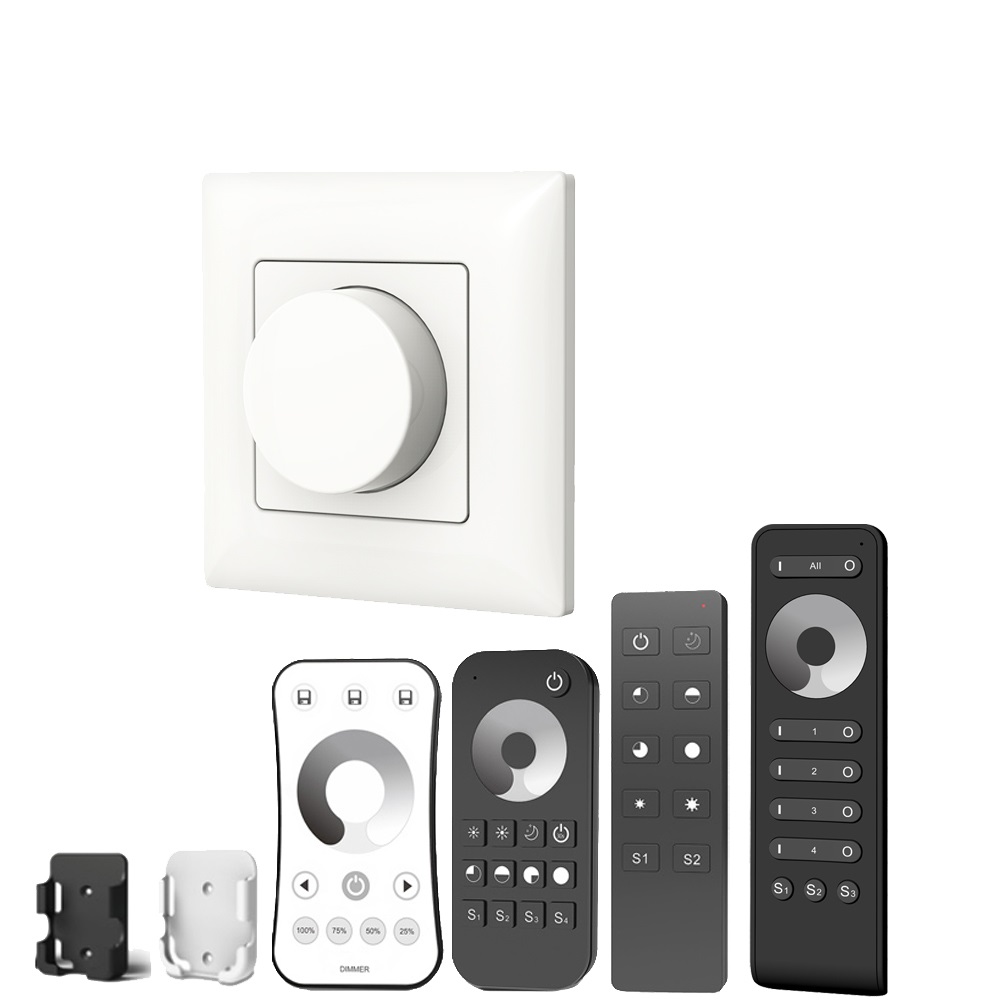

4 Kinds of different remote for optional according to your needs:
