RF-LED-Dimmer-12V-24V-DC-For-single-color-warm-white-led-strip-light

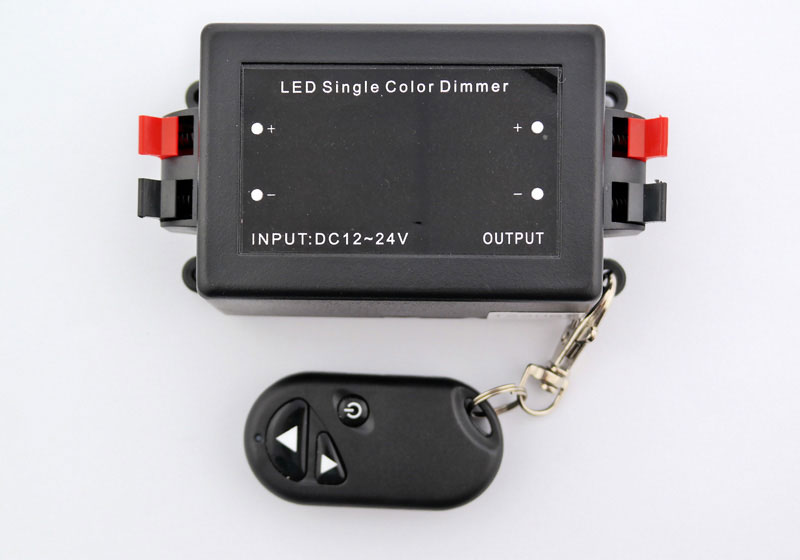

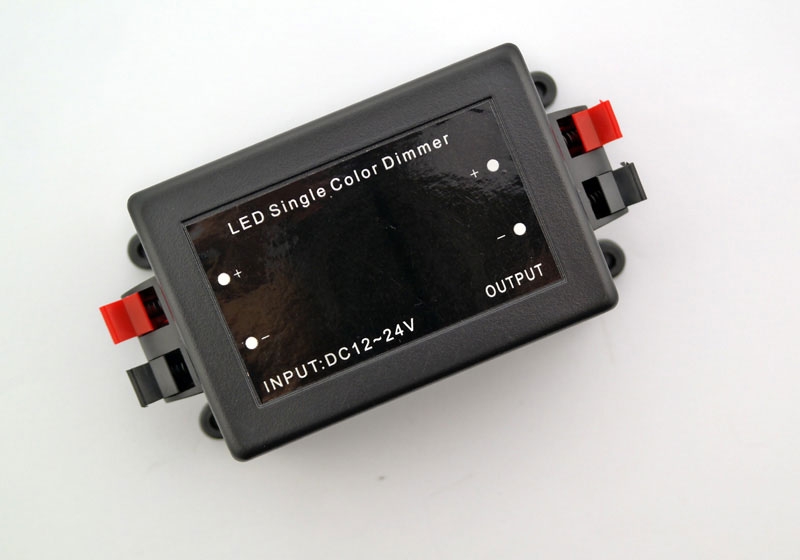

Single Channel RF LED Dimmer 12V 24V 8A

  • RF 3 keys Wireless Remote,can go through the barrier
  • 12-24V DC   8A
  • Adopt the most advanced PWM digital brightness-adjusting technology
  • 2 Years’ warranty
  • CE/RoHS approved for EU market

Single Channel RF  LED Dimmer:
RF single color LED dimmer is dedicated to adjust the brightness of LED lights, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting technology at present, users can use the RF wireless remote control to control the brightness in the distance, it is suitable for LED Strip and other low-power constant voltage LED products. it can extend life tenure of LED and energy-saving.





Product Feature

  • Adopt the most advanced PWM digital brightness-adjusting technology.
  • Adopt the RF wireless remote ,to control the brightness in the distance
  • Extend the life tenure of LED and energy-saving.
  • Dedicated to adjust the brightness of LED lights.
  • 2-year warranty.







Technical Parameters

Working temperature -20-60℃
Supply voltage DC12V~24V
Output 1 channel
External dimension L115*W56*H34 mm
Packing size L121*W85*H46 mm
Net weight 110g
Gross weight 130g
Static power consumption <1W
Output current <8A
Output power 12V:<96W,  24V:<192W


Wiring Diagram as follows:



how to connect to led dimmer with single color warm white led strip light

how to connect to led dimmer with single color warm white led strip light
