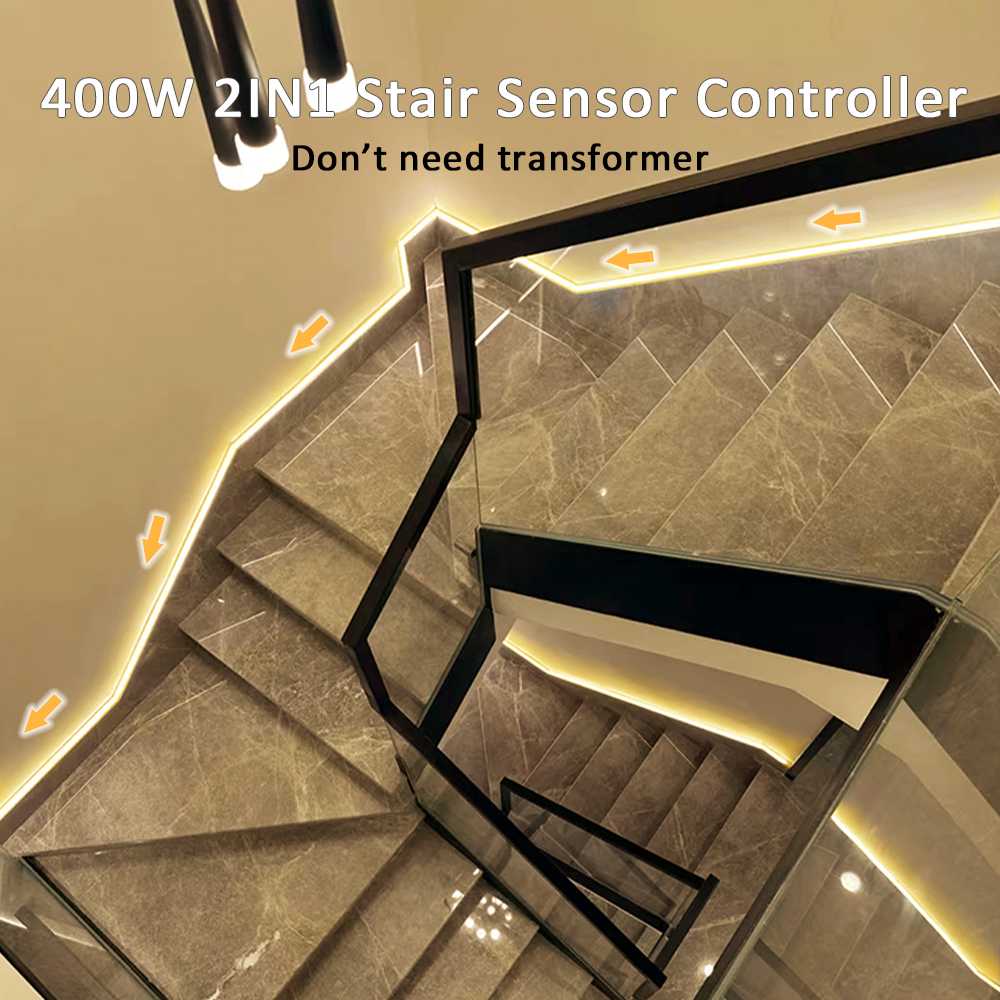

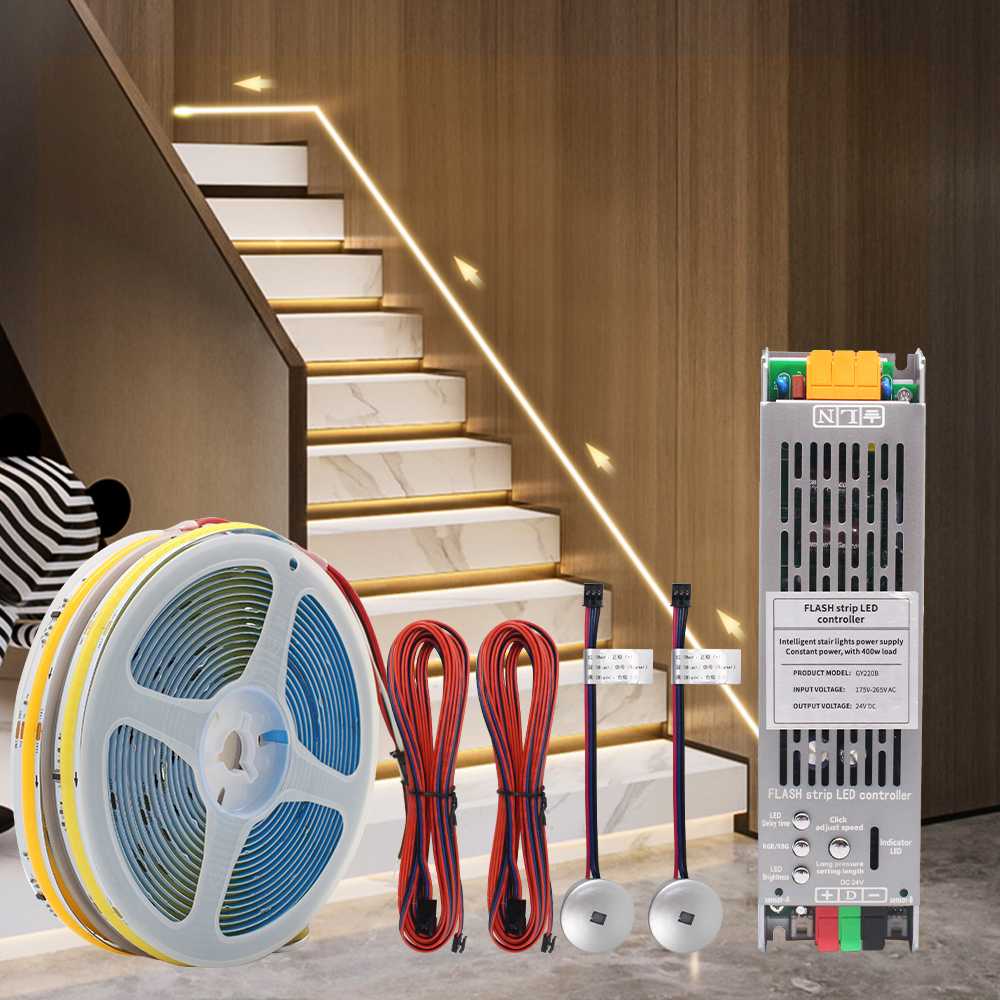

New Products: Intelligent stair light controller with motion sensor

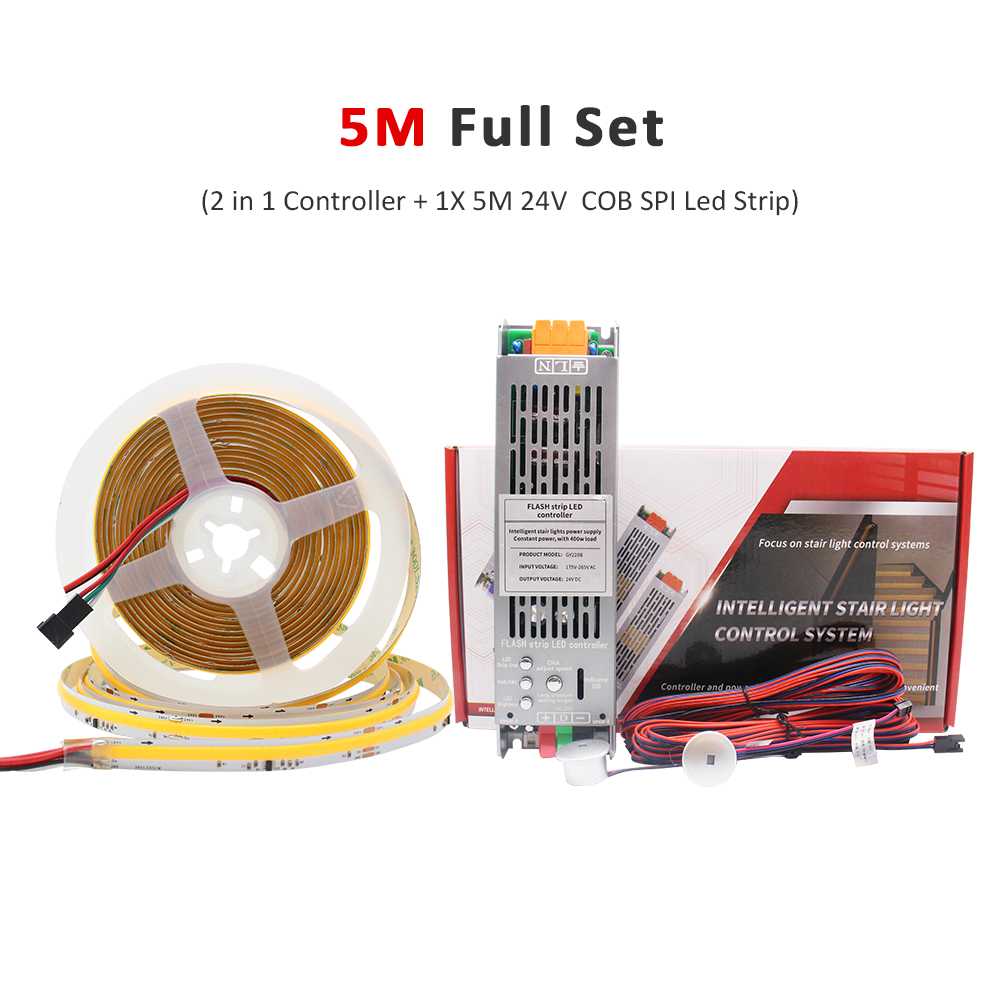

Design: 2 in 1 ( 24V 400W Power Supply + Stair Light Controller integration), installation is more convenient.
Input Voltage: 175V-265V AC ( 220V,230V is working, 110V is not working)
Output: DC 24V
Max Power: 400W
Product size: 223*60*27mm

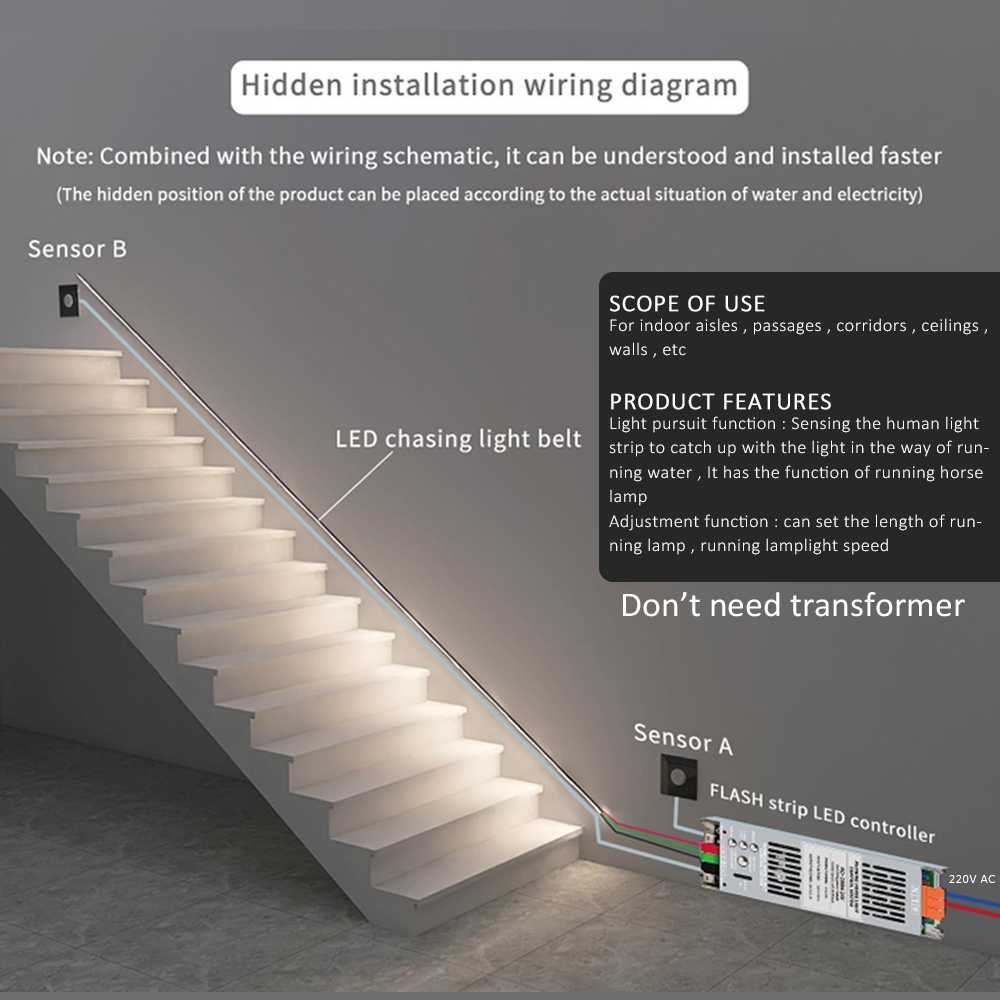

Sensor A: Used for Upstairs
Sensor B: Used for Downstairs
2pcs Extension Cable Length: 5Meters ( Sensor to controller)
——————————————————————————————————————————————

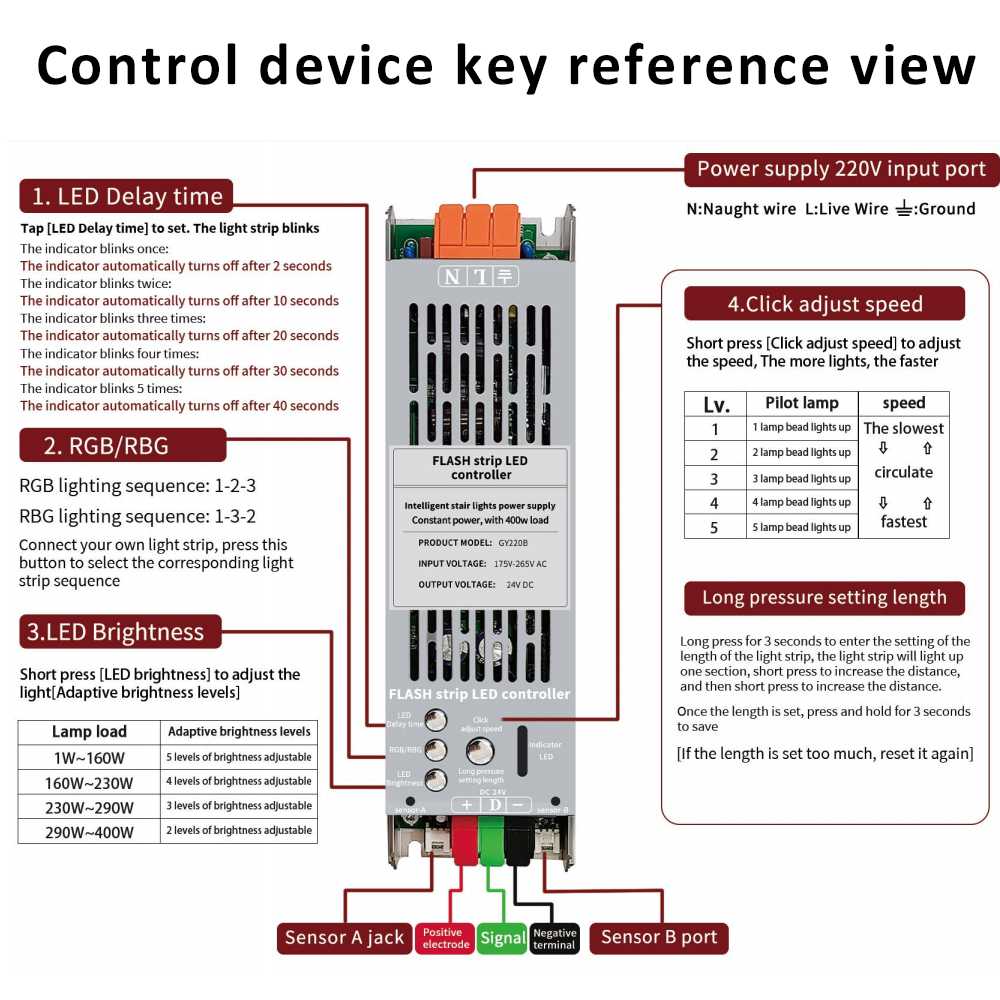

Function:
1. Timer Delay OFF (2s,10s,20s,40s,60s,80s Auto-delay-off adjustable)
2. Brightness & Speed is adjustable
3. Pixel Number is adjustable, Max. up to 1024 Pixels. Strip Length Max. up to 42 Meters.
——————————————————————————————————————————————

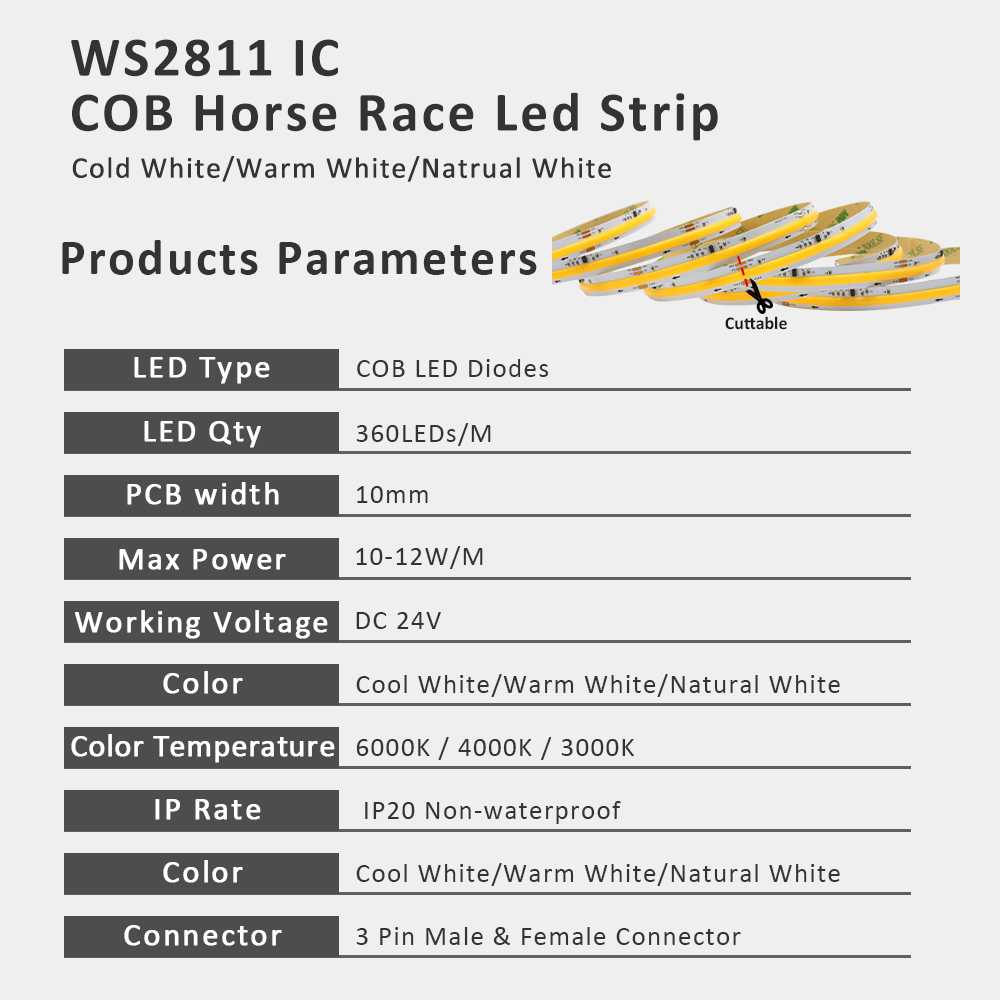

Compatiable SPI Led Strip Light:
Working Voltage: 24V
LED Type: COB
Chips Qty: 360 Chips/meter
Length: 5M/10M

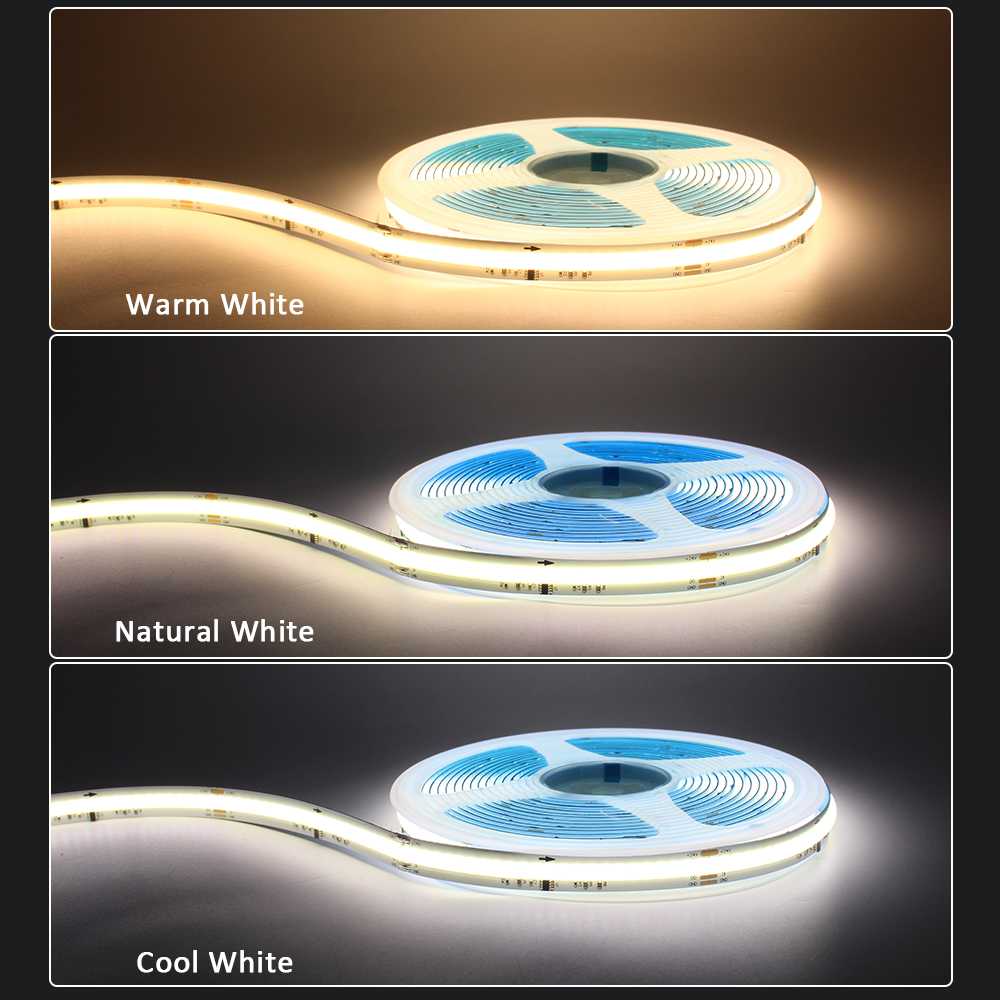

Color: Warm White 3000K, Natural White 4000K, Cool White 6000K
PCB Width: 10mm
——————————————————————————————————————————————
Strip Wire:
Red Wire— Postive +24V
Green Wire —- GND signal wire
White Wire —- Negative -24V
——————————————————————————————————————————————
NOTE:
You must read the User Manual for Setting when testing. IF not, Only half led strip working. THAT IS NOT Quality Problem!!!
Step A: Set Pixel Number make sure all diodes are working for the whole led strip.
Step B: Set Strp Order through Pressing RGB/RBG button
