1 Channel/Step-less dimming/Wireless remote control/Push Dim /Multiple protection
● Input voltage:12-24V DC
● Input current:15.5A
● Output voltage:12-24VDC
● Output current:1CH,15A
● Output power:180W/360W(12V/24V)
● Output type:Constant voltage
● Input signal:RF 2.4GHz + Push Dim
● Control distance:30M
● Dimming level:4096 levels
● Dimming range:0 -100%
● Dimming curve:Logarithmic
● PWM Frequency:500Hz (default)
——————————————————————————————————————————————————
Features:
● 4096 levels 0-100% dimming smoothly without any flash.
● Match with MJJC 2.4G single zone or multiple zone dimming remote control.
● One RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.

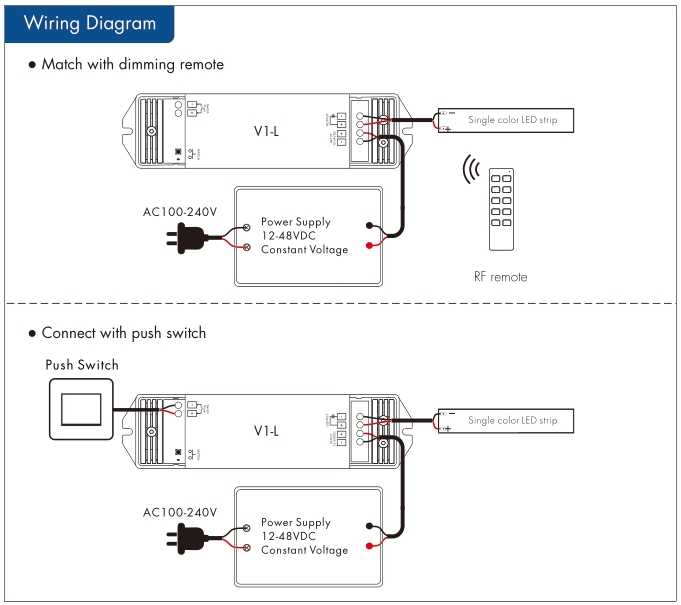

● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Over-heat / Over-load / Short circuit protection, recover automatically.
