Features:
* RF dimmer match with a variety of dimming remote, realize functions of switch and dimming.
* Smooth dimming and switch without any flickering
* Adopt 2.4GHz wireless technology, remote distance up to 30m, one RF dimmer can accept up to 10 remote control.
* Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver
* Within 15m, so the remote control distance can be beyond 100m.

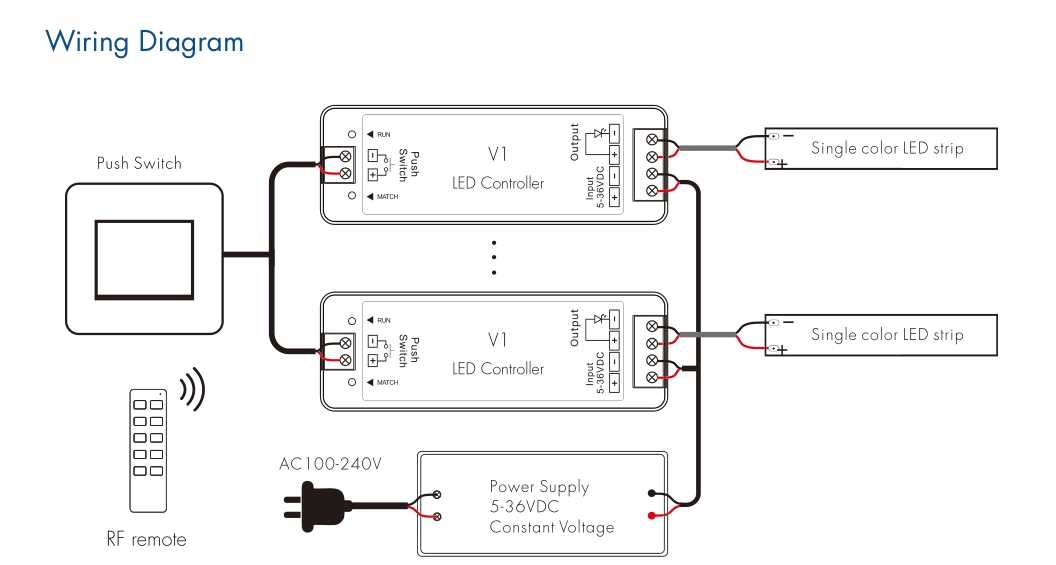

* Can connect with external push switch to achieve on/off and dimming function.
* Work with power repeater to expand output unlimitedly. You can buy MJJC EV1 amplifier addtionally.
* Mini-style RF dimmer, one channel constant voltage output.
——————————————————————————————————————————————————

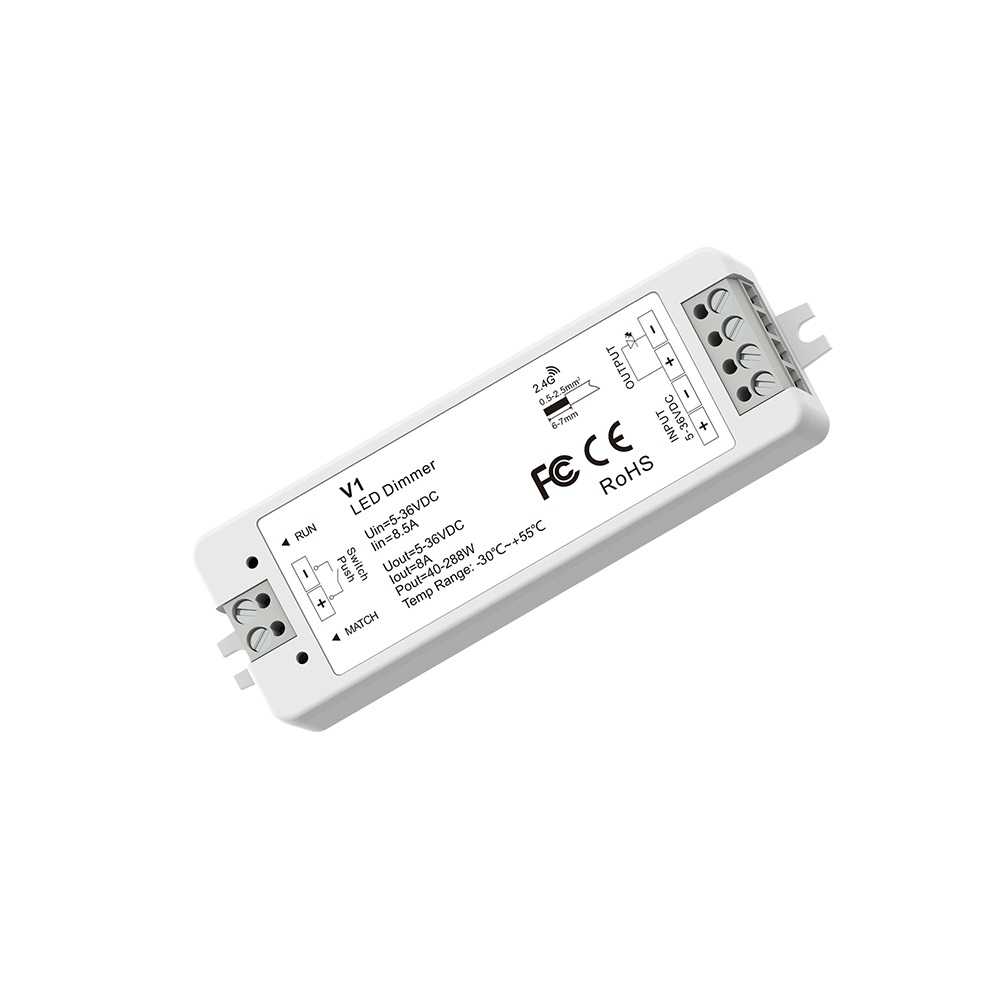

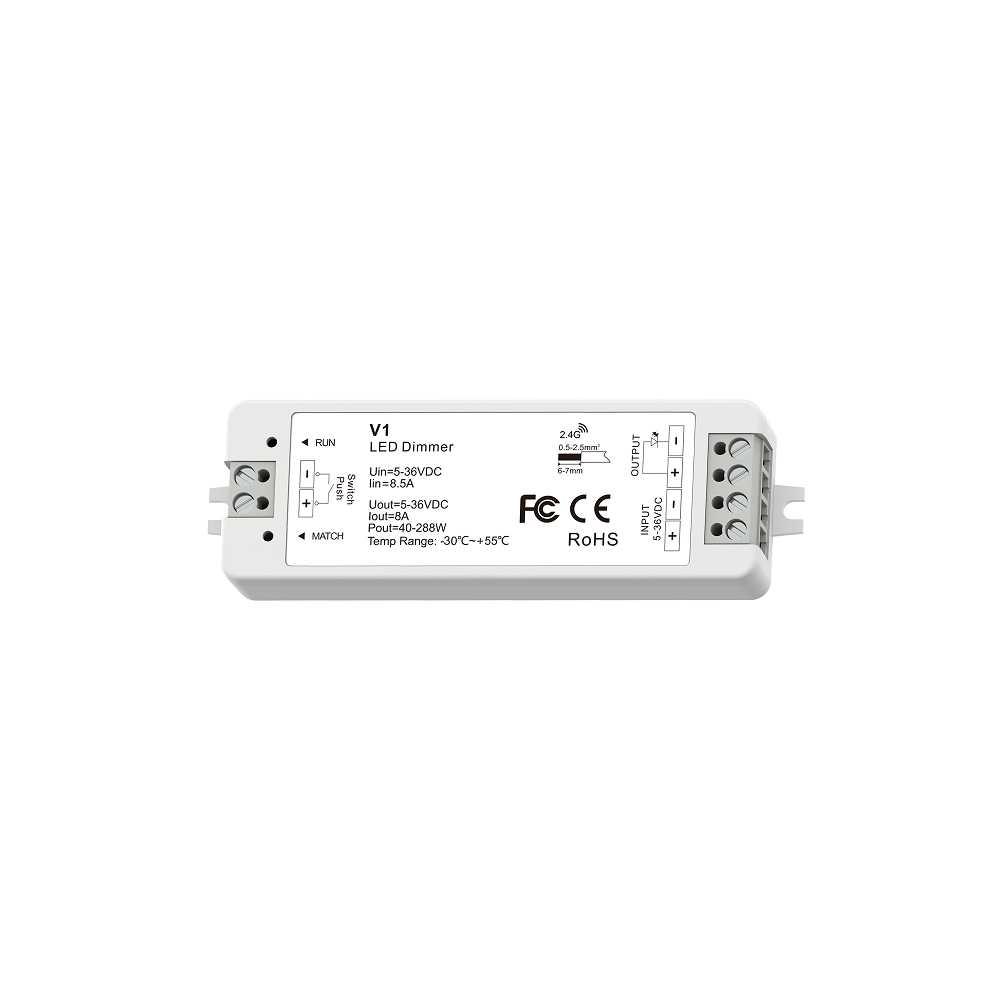

(V1 Receiver) Specifications:
Product Name:2.4G Wireless RF LED Dimmer
Model A:MJJC-V1
Input: DC 5V- 36V
Working Temperature: -20-60centi-degree
Max load current :8A/Channel ( 1 Channel)
Max Power Output: 5V Max 40W, 12V Max 96W, 24V Max 192W, 36V Max 288W
Output gray: 256 levels
Frequency of RF remote control: 2.4G MHz
RF Remote Distance: 30M
Product size:(Approx) L97x W33x H18mm
——————————————————————————————————————————————————–
Applications:
1. All the receivers in the same zone.

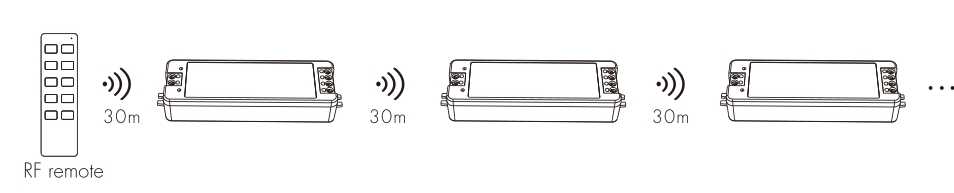

Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m,
as long as there is a receiver within 30m, the remote control distance can be extended.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled
by the same remote.
Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range.
Strong signal sources such as WiFi routers and microwave ovens will affect the range.
We recommend for indoor applications that receiver placements should be no further apart than15m.
as long as there is a receiver within 30m, the remote control distance can be extended.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled
by the same remote.
Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range.
Strong signal sources such as WiFi routers and microwave ovens will affect the range.
We recommend for indoor applications that receiver placements should be no further apart than15m.
2. Each receiver(one or more) in a different zone, like zone 1, 2, 3 or 4.
