220v led strip light warm white

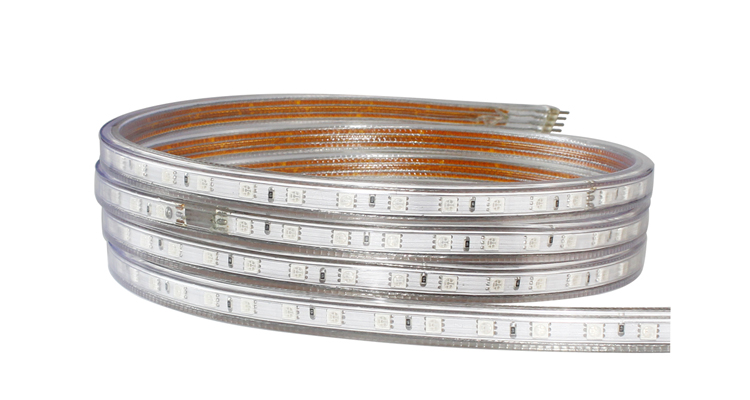

110V 220V SMD 5050 RGB LED Strip Light IP67 Waterproof

  • 110V,120V,220V,230V AC
  • Max control length up to 100Meters
  • 8mm or 10mm width PCB to keep high stability,up to long life-span
  • RGB/Red/Yellow/Blue/Green/White/Warm White/Natural White/Purple/Pink
  • 2 Years’ warranty
  • CE/RoHS approved
  • OEM/ODM is acceptable

Advantages compared with 12VDC Low Voltage LED Strip Lights
1. 110V 220V high voltage led strips is an “updated version” of the low voltage strip for some special applications. The use of DC 12V led strip has to be with power supply, and its best length is 5 meters, our high voltage strip could deal with all the problems,only a small AC converter,then can be connected to 110V/220VAC power directly.(save the cost of Power Supply)
2. 100 meters in one straight line without connection, no signal amplifier needed. But,110-120V, 220-240V voltage is dangerous to our body, so we use the PVC material to protect and also the PVC material is waterproof
3. High quality PVC tube waterproof IP67,high brightness,high light transmittance
4. 50M/Roll or 100M/roll, which is much more easier to connect and install.


Technical Parameters:

Max linkable length:50meters,100Meters
LED Strip is capsuled by silicone cover,applicated high quality anti-aging PVC material
Cuttable at every 0.5 or 1 Meter on marked place
AC110V/220V input
No need for expensive power supply
Vivid Color Options: RGB,Red,Yellow,Blue,Green,White,Warm White (Two colors can be customized as your request).
IP67 for waterproof applications indoor and outdoor,but cannot put under the water,after all it’s not safe for high voltage.
Easy to assemble and maintain,flexible and durable to be bent into any shape you want.
Strong Enough to stand heavy pressure
Weather and Temperature resistant
Use 5050 Tri-chip high brightness SMD LEDs
Strip Dimension: 10000*13.5*7MM

PCB width: 8mm/10mm avaliable
Color of PCB:White
Power: 14.4W/M(SMD5050 60LEDs/M)
Beam Angle:120degree
Waterproof: PVC tube waterproof IP67

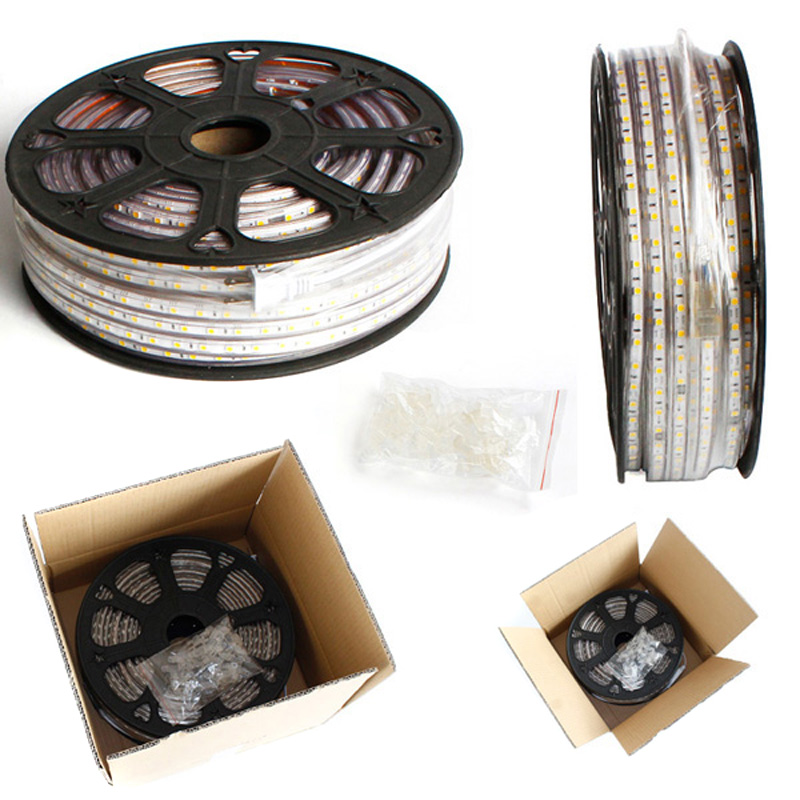

Package/5050: 50M/Roll
CTN Size/5050:35*35*25CM


How to Connect ?

How to Connect to Single color high voltage Led Strip Light ?

How to Connect to Single color high voltage 110-240v AC Led Strip Light ? please check above the wiring diagram.

IF you need RGB 110-240V AC led strip light,need a high voltage RGB Led controller,cannot use 12-24v DC Led controller,please inquiry us  to ask for offer.
