110V 220V SMD5730 LED Strip Lights (1)

110V-240V AC SMD 5730 LED Strip Light

  • Higher brightness than SMD5050
  • 0.5/1m cuttable
  • 110-240V AC
  • EU/US/UK power lead plug cusomized
  • 2 years’ warranty with good replacement policy
  • CE/RoHS
  • Retail package design is acceptable

110V 120V 220V SMD 5730 LED Strips Advantages compared with 12V DC Low Voltage LED Strip Lights
1. 110V 220V high voltage led strips is an “updated version” of the low voltage strip for some special applications. The use of DC 12V led strip has to be with power supply, and its best length is 5 meters, our high voltage strip could deal with all the problems,only a small AC converter,then can be connected to 110V/220VAC power directly.(save the cost of Power Supply)
2. 100 meters in one straight line without connection, no signal amplifier needed. But,110-120V, 220-240V voltage is dangerous to our body, so we use the PVC material to protect and also the PVC material is waterproof
3. High quality PVC tube waterproof IP67,high brightness,high light transmittance
4. 50M/Roll , which is much more easier to connect and install.


Technical Parameters:

Max linkable length:50meters
LED Strip is capsuled by silicone cover,applicated high quality anti-aging PVC material
Cuttable at every 0.5 or 1 Meter on marked place
AC110V/120V/220V/230V input
No need for expensive power supply

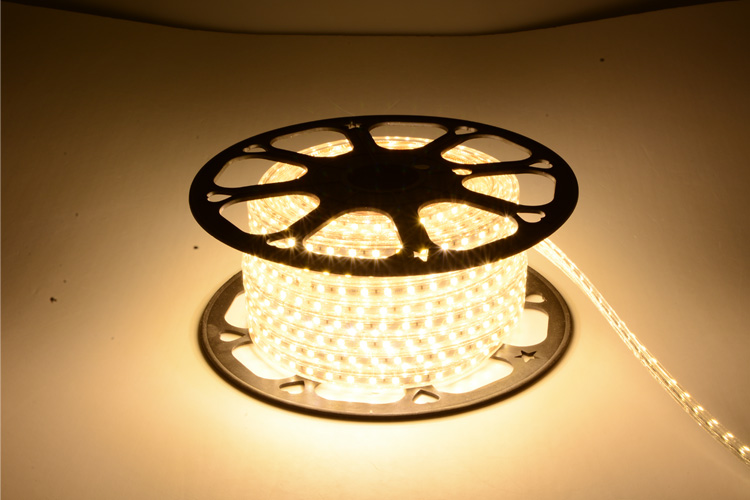

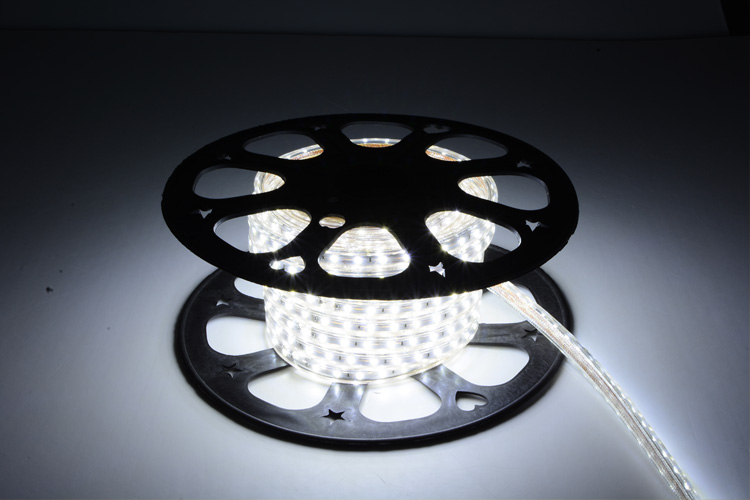

Vivid Color Options: Warm White (2800-3200K), Cool White (6000-6500K)
IP67 for waterproof applications indoor and outdoor,but cannot put under the water,after all it’s not safe for high voltage.
Easy to assemble and maintain,flexible and durable to be bent into any shape you want.
Strong Enough to stand heavy pressure
Weather and Temperature resistant
Use 5730 Tri-chip high brightness SMD LEDs,up to 45-50lm per LED
Strip Dimension: 10000*14*7MM

PCB width: 8mm avaliable
Color of PCB:White
Power: 14.4W/M(SMD5730 60LEDs/M)
Beam Angle:120degree
Waterproof: PVC tube waterproof IP67
Package : 50M/Roll
CTN Size :35*35*25CM
N.W/G.W:7.0KG/7.5KG


How easy to connect ?  dont worry,see the following wiring diagram:

How to Connect to Single color high voltage Led Strip Light ?

How to Connect to Single color high voltage Led Strip Light ?
