MJJC-SZ600-20K RF LED Controller 24V

12-24V 24A(8A*3Channel) RF 20Keys RGB LED Sync Controller

  • 12-24V DC
  • 8 Amp per channel, 24A totally
  • With RJ45 Series port to realize synchronous function
  • 433.92 MHz RF wireless technical
  • 2 Years’ warranty
  • CE/RoHS/R&TTE approved

RF 20 key LED RGB Controller
20-key RF controller adopts the advanced micro control unit, it is used for controlling a variety of LED light. For instance, point source of light, flexible light strip, wall washer lamp and so on. It has many advantages such as good appearance, easy connection and simplicity to use. Adopts RF 20 key remote control to ON/OFF, choose colors, change dynamic modes. Especially, it is designed with synchronization function. It is convenient to use RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips. In theory, they can be connected numerous.



Product Features:

  • Designed for RGB constant voltage LED lights, Max.output:3*8A.
  • Working voltage DC12-24V, it can be universal in this range.
  • Adopts PWM digital technology, signal frequency: 400Hz.
  • Multiple controllers can work synchronically when connected by network cable through the RJ45 connector, the network cable between 2 ports up to 80 meters.
  • RF 20-key wireless remote, RF frequency: 433.92MHz.
  • 14 modes in total, including 8 static colors and 6 dynamic changes.
  • Warranty of this product is one year, exclude the artificial situation of damaged or overload working.


Technical Parameters

Working temperature -20-60℃
Supply voltage DC5V, 12V~24V
Output 3 channels
Connecting mode common anode
External dimension L91*W88*H24 mm
Packing size L108*W108*H50 mm
Net weight 210g
Gross weight 240g
Static power consumption <1W
Output current <8A(each channel)
Output power 5V:<120W,  12V:<288W,  24V:<576W

Direction for use

  • Connect the load wire and sync-signal cable at first, following by the power wire.
  • Ensure short circuit can not occur before you turn on the power.
  • Adopt RF wireless remote control, 20 keys in total, function of each button as below:


Brightness + Brightness – pause on/off
Static red Static green Static blue Static white
Static white Static yellow Static cyan Static purple
Auto run three base color jumpy Three color gradually change speed +
Flash seven base color jumpy Seven color gradually change speed-


Controller (Receiver) connection as follows:

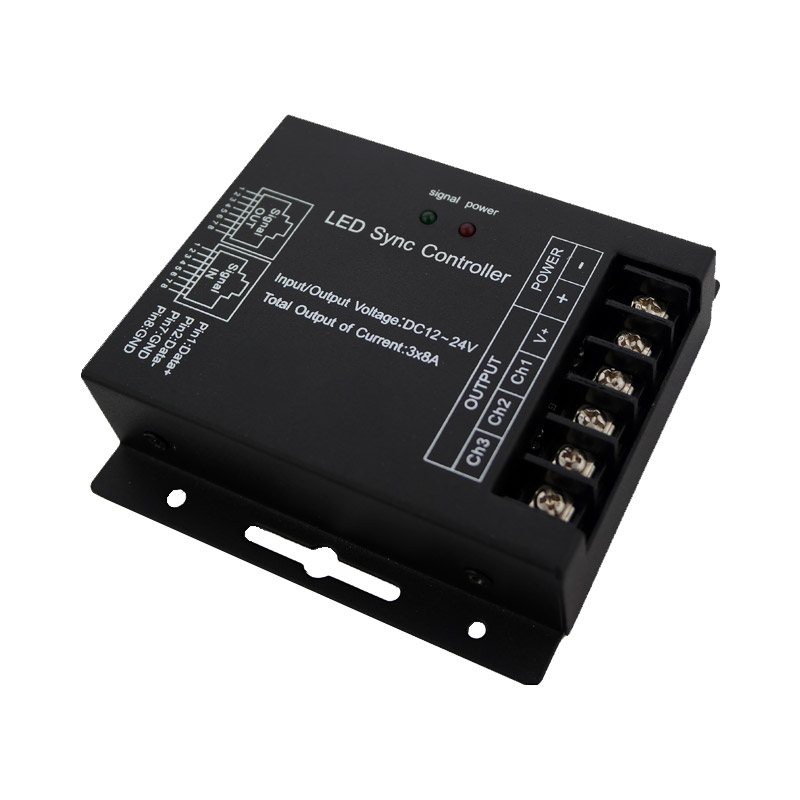

RGB LED Sync Controller 12V 24V DC 24A

RGB LED Sync Controller 12V 24V DC 24A


Option 1: Independently Control Wiring Diagram

Option 1: Independently Control Wiring Diagram



Option 2: 1pc Master Controller + Sub-controller controlled by one Touch Remote

Option 2: 1pc Master Controller + Sub-controller controlled by one Touch Remote
