MJJC-SZ600-WP86-RGB 86 Type European 24A Wall panel led controller

86 EU Type Wall Panel Mounted RGB LED Controller 24A

  • Wireless Control between Sender & Receiver
  • 24 Amp Output
  • With RJ45 Sync port to realize Master & Sub-control Solution
  • CE/ROHS approved
  • 2 Years’ warranty
  • 86 type for EU countries, 120 Type for US countries


LED RGB controller with RF wireless Full Touch Wall Panel

MJJC-SZ600-WP86-RGB, adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED RGB lamps. For instance, point source of light, flexible light strip, led modules, led strings and so on; It belongs to low-voltage DC power input and output with four interfaces, including + V is extremely common interfaces, the other three for the RGB control interface. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through full-touch wall panel remote control. In addition, It is convenient to use RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips. In theory, they can be connected numerous.


Product Features:

  • Designed for RGB constant voltage LED lights, Working voltage DC12-24V.
  • Three channels output, Max. load current: 3CH*8A; Max. load power: 288W/12V; 576W/24V.
  • Adopts full-touch wall panel remote control with fashion appearance, no need line-of-sight. Control range up to 20 meters. The working voltage of wall-panel is AC90-265V.
  • Structure/dimension/installation of the wall panel according to the 86-type European standards.
  • Memory function, each time power-on reserve the mode which stop in the last power-down.
  • The brightness of static color is adjustable, 256 levels in total; the speed of dynamic changes is adjustable, 100 levels in total.
  • Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
  • Multiple controllers can work synchronically when connected by network cable through the RJ45 connector, the network cable between 2 ports up to 80 meters.
  • Warranty of this product is one year, exclude the artificial situation of damaged or overload working.


Technical Parameters:


Working temperature -20-60℃ Supply voltage DC12V-24V
Static power consumption <1W Connecting mode Common anode
Grayscale 256 levels Speed stage 100 grade
External dimension L91*W88*H24 mm Packing size L102*W102*H66 mm
Net weight 280g Gross weight 300g
Output 3 channels Max. Output current 8A*3CH
Mode 18 RF distance ≤20m
PWM frequency 433.92Mhz Memory function support
Output power 12V:<288W, 24V:<576W


Remote control:

Ambient temperature 0-45℃ Working voltage AC90-265V(50/60Hz)
Standby power 0.2W Working power 2W
Net weight 130g RF frequency 433.92MHz
Dimension 86*86*34mm RF distance ≤20m
Structure 86-type European standard


Wiring Diagram:

Receiver (controller) was connected as following wiring diagram,

Master control + sub-control synchronously project solution,one Remote control the whole CT led strip lights

Master control + sub-control synchronously project solution,one Remote control the whole RGB led strip lights



RGB LED Sync Controller 12V 24V DC 24A


The Wall Panel Touch Remote (Sender) was connected to the high voltage 85-265V AC, they are wireless connection between sender & receiver, so that you can put anywhere you want ( the Max distance < 30m).

They are independent.

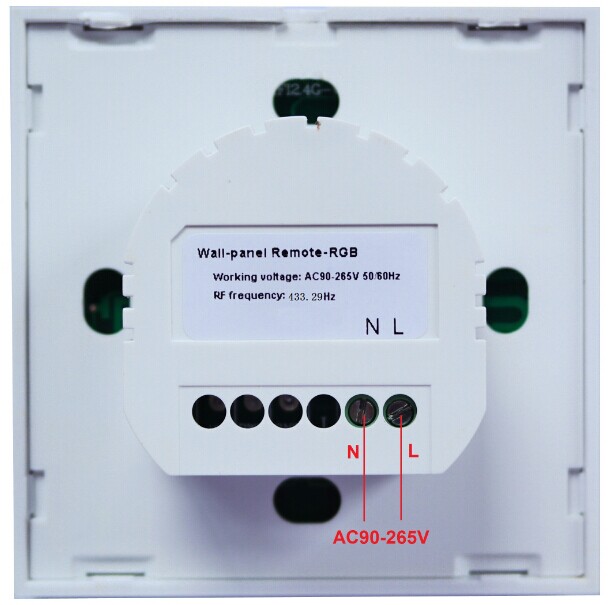

MJJC-SZ600-WP120-RGB back cover


Selling Points:

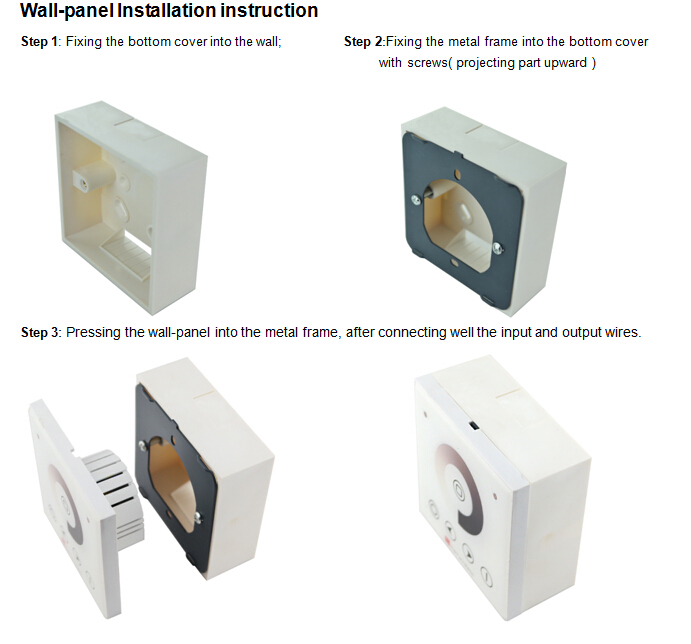

Install Ways for Panel Controller
