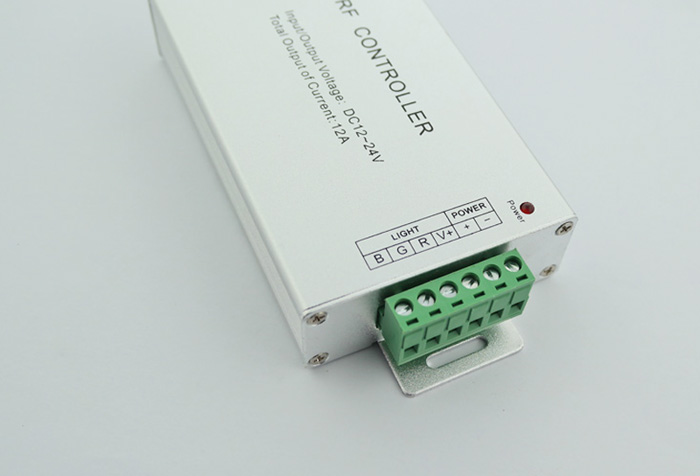

20Keys RF RGB LED Strip Light Controller 12V 24V 12A

20 Keys RF Led RGB Controller
20-key RF controller adopts the advanced micro control unit, it is used for controlling a variety of LED light. For instance, point source of light, flexible light strip, wall washer lamp and so on. It has many advantages such as good appearance, easy connection and simplicity to use. Adopts RF 20 key remote control to ON/OFF, adjust brightness, choose colors, change dynamic modes. In order to achieve more led strips work together, RGB amplifier is available.

Product Features:

• RF wireless 20 key remote RGB controller.
• output current:4A*3CH,DC12V-24V.
• 14 modes in total, including 8 static colors and 6 dynamic changes.
• Speed for dynamic modes is adjustable, brightness for static modes is adjustable.
• User friendly and easy connection, as a popular product for many years.
• CE/RoHS, 2 years warranty.

Technical Parameters:

Direction for use

• Connect the load wire at first, following by the power wire;
• Ensure short circuit can not occur before you turn on the power；
• Adopt RF wireless remote control, 4 keys in total, function of each button as below：

Wiring Diagram of LED Controller with RGB Led Strip Lights as bellow:

This RF LED Controller can connect 10Meters 12V SMD5050 RGB Led Strip Lights,if you want to connect more than 10meters,you can add some more RGB Signale Amplifier to connect longer strips.

How to install RGB LED Strip Light to the controller ?
