2016 New 86 EU Type 12-24V 12A Wall Touch Panel LED Controller

  • New & Special installation,easy and protection the controller well.
  • 12-24V DC
  • 12A based on full load
  • New BT Remote
  • EU 86 / US 120 type avaliable
  • CE/RoHS
  • 2 Years’ warranty


LWP86 series Led wall panel RGB controller with RF BT remote

It adopts the most advanced PWM (Pulse Width Modulation) digital control technology, It is constant voltage led full-touch wall panel RGB controller with RF button remote, specially designed for RGB Led lighting. For instance, Led module, flexible Led strip, etc. To select the desired light colors or modes, not only by the wall panel controller, but also by the wireless remote. It has many advantages such as beautiful appearance , easily to install, and simply to use. The dimension and structure of the wall panel are in line with the 86-type European standard.



  • Designed for RGB constant voltage LED lights, Working voltage DC12-24V.
  • Two channels output, Max. load current: 3CH*4A; Max. load power: 144W/12V; 288W/24V.
  • The wall panel adopts the capacitive touch-sensitive design, unique appearance and easy-operation.
  • Adopts RF 14keys remote control with fashion appearance, no need line-of-sight.
  • RF frequency:2.4GHz, distance up to 20 meters.
  • Memory function, each time power-on reserve the mode which stop in the last power-down.
  • Amplifier is available to achieve more LEDs sync-control.

Structure/dimension/installation of the wall panel according to the 86-type European standards



Technical Parameters:

The wall panel controller:

Working temperature -20-60℃ Working voltage DC 12~24V
Static power consumption <1W Connecting mode Common anode
Gray scale 256 levels RF frequency 2.4GHz
N.W 140g G.W 160g
External dimension L86*W86*H34mm Packing dimension L150*W90*H60mm
Output 3 channels Max. Output current 4A*3CH
PWM frequency 700Hz Max. Output power 12V:144W,  24V:288W


RF remote:

Working temperature -20-60℃ Supply voltage 3V(AAA battery*2)
Standby current 18uA Transmitter current 25mA
Static consumption 54uW Launch consumption 75mW
N.W 65g External dimension L150*W40*H20mm
RF remote range Up to 20m RF frequency 2.4GHz



86 type for EU countries

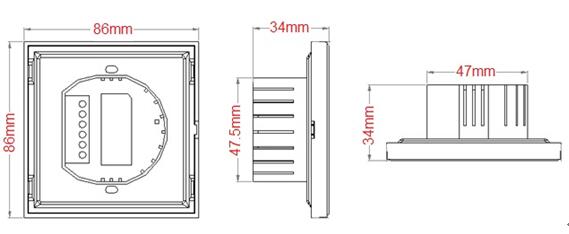

Size of 86 EU standard rgb led wall mounted controller

Interface Specification:

How to install the led controller

Please kindly note this new designed wall touch panel with others’ one,they are similar function from the looking, but there is a big difference between them,do you notice it ?   —– That’s the installation,please see the gray metal plate on the base cover (step 2 as bellow).

This solution will be easy to install and protect the electronic components better when you install it.

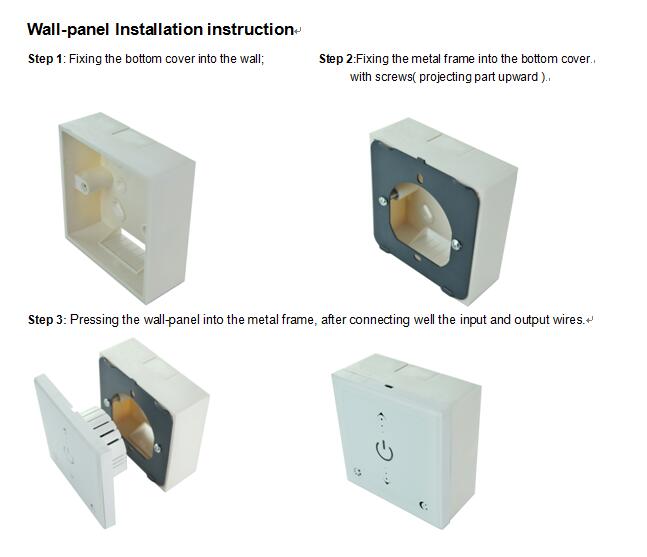

EU panel led controller back cover install

Direction of use

  • Connecting the load wire at first, followed by the power wire;
  • Please ensure short circuit can not occur between wires before you turn on the power;

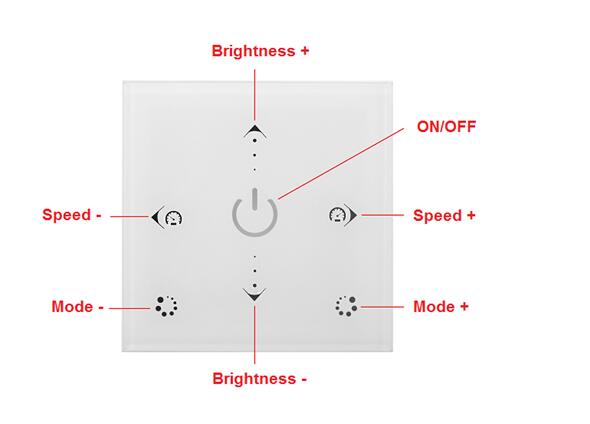

Buttons of wall-panel

You can control the rgb led lights through this 86 type LED Wall Mounted Panel Remote

Wall Panel RGB Remote Controller 12V 24V

You can also use this Black 14 keys new remote to wireless-control it.

BT 14 Keys remote controller


How to connect with 12-24V RGB LED Strip Lights ?

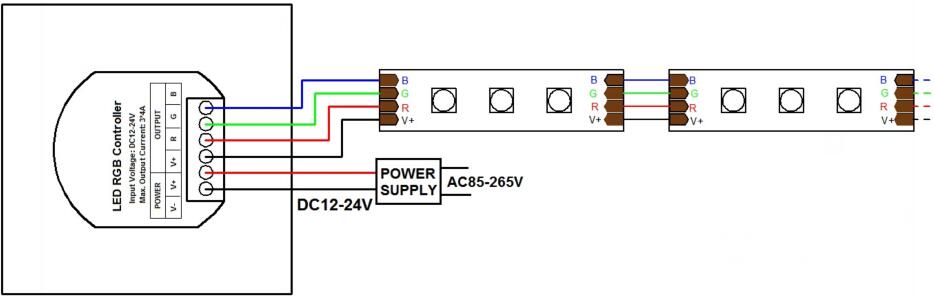

Wiring Diagram of wall panel led controller
