2015 New RGB 24A RGB LED Controller IR 44 Keys Remote

12-24V 24A IR 44 Keys RGB LED Sync Controller

  • RGB led controller with memory function
  • 12V 24V DC
  • Output Current: 24A ( 8A*3Channels)
  • 2 Years’ warranty
  • OEM/ODM acceptable
  • Widely for home lighting,building lighting etc.

44-Key LED Sync Infrared Controller
MJJC-SZ600-44K, adopts the advanced micro control unit, it is used for controlling a variety of LED lamps. For instance, point source of light, flexible light strip and so on; it has many advantages such as low price, easy connection and simply to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. In addition, customers can adjust their light color as they like.




Product Feature:
 Adopts the advanced micro control unit ,suit for all kinds of the constant voltage LED lamps.
 Two synchronization interface adopt RJ45 network cable port.
 There is a IR remote touch control 44 keys, you could adjust brightness, static color choices and various dynamic changes in lighting effects.
 There are 28 modes in total, including 20 static and 8 dynamic changes; The brightness of static color and the speed of dynamic changes are adjustable.
 Output to RGB three channels, each allows a maximum current of 8A.
 High power can supply more LED strips.
 2 year warranty.






Technical Parameters:

Working temperature -20-60℃
Supply voltage DC5V, 12V~24V optional (specify the required voltage on orders)
0utput 3 channels
Connecting mode common anode
External dimension L130*W64*H24 mm
Packing size L137*W80*H54mm
Net weight 210g
Gross weight 240g
Static power consumption <1W
Output current <8A(each channel)
Output power 5V:<120W,  12V:<288W,  24V:<576W


The functions of 44 Keys Remote:

Brightness rise Brightness fall Pause/Run On/Off
Static red Static green Static blue Static white
Static orange Static light green Static dark blue Static  milk white
Static dark yellow Static cyan Static Lyons blue Static white pink
Static yellow Static light blue Static purple Static green-white
Static light yellow Static sky blue Static brown Static blue white
Increase red Increase green Increase blue Speed up
Decrease red Decrease green Decrease blue Speed-down
DIY key1 DIY key2 DIY key3 Automatic change
DIY key4 DIY key5 DIY key6 Flash on and off
3 color jumpy change 7 color jumpy change 3 color fade change 7 color fade chang

Interface Instructions and Wiring Diagram:

IR Receiver of LED Controller

IR Receiver of LED Controller

LED Master Control with RJ45 sync interface

LED Master Control with RJ45 sync interface


There are 2 kinds of wiring diagram depends on your projects

Option 1:

IF your home lighting projects is less than 20m (here for example 5050 60leds/m rgb strips),you just need one this 24A powerful sync controller.

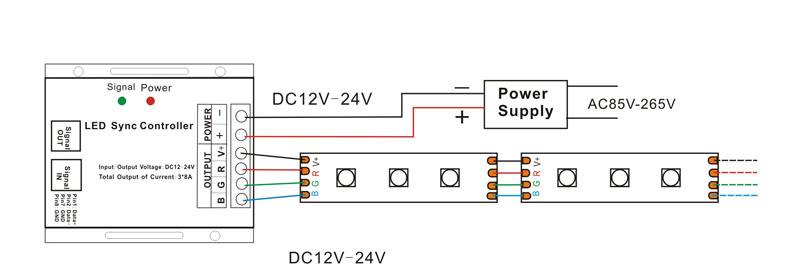

MJJC-SZ600 24A LED Controller Diagram

Optiona 2:

You can use only  one remote to control hundreds of rgb led strip lights,please refere the following solution. This solution even dont need RGB Amplifier,just to realize synchronously control by RJ45 sync interface,save the most of time and spirits,also make the projects more simple and easy.

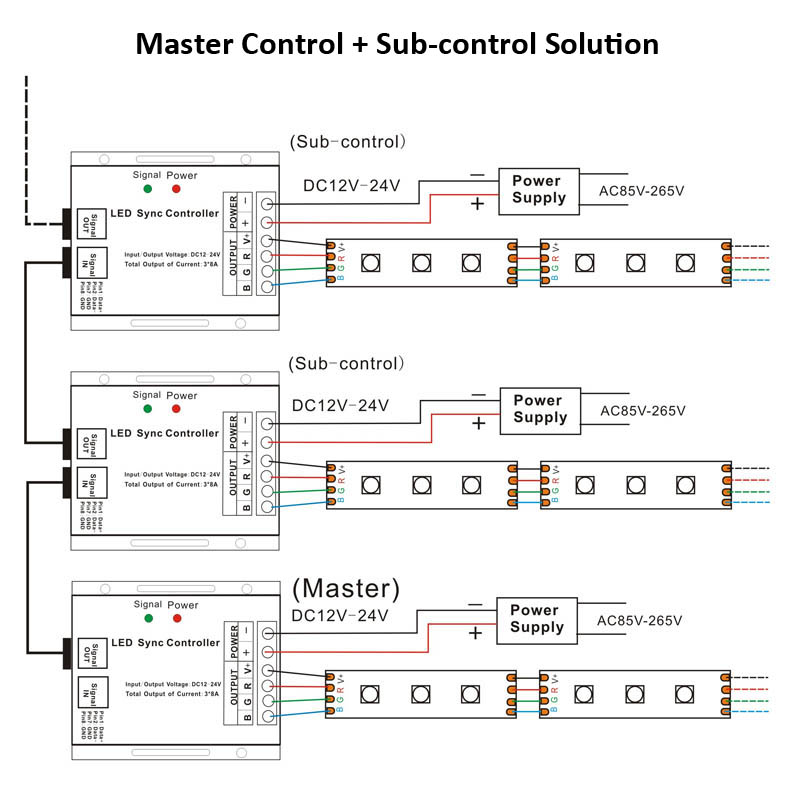

SZ600 LED Master Controller Parallel Connection
