IR 24 Key RGB LED Strip Controller 12V 24A 288W

  • Working voltage: 12-24V DC
  • Output current: 8A*3CH
  • Factory price based on good quality and best service
  • OEM service acceptable
  • 2 Years’ warranty
  • Used for constant voltage led lights

IR 24 Key RGB LED Strip Controller

MJJC-SZ600-24K, adopts the advanced micro control unit, it is used for controlling a variety of LED lamps. For instance, point source of light, flexible light strips led and so on; it has many advantages such as economical price, easy connection and simply to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. Additionally, customers can adjust their light color as they need.


Product Feature:

  • Adopts the advanced micro control unit ,suit for all kinds of the constant voltage  12-24V LED Strips,LED Modules,LED Light Bar etc.
  • Two synchronization interface adopt RJ45 network cable port.

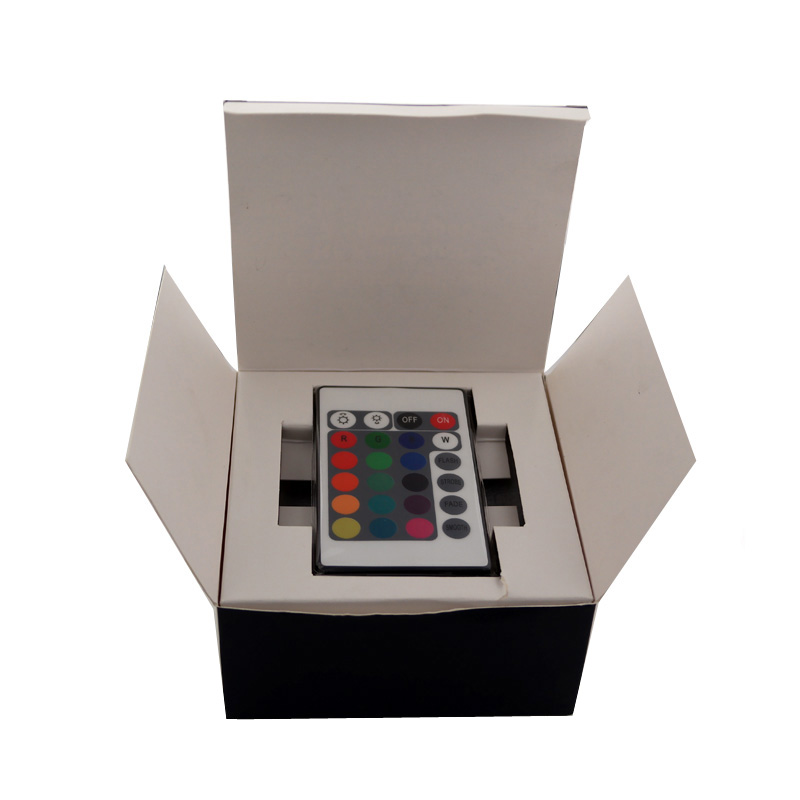

  • There is a IR remote touch control 24 keys, you could adjust brightness, static color choices and various dynamic changes in lighting effects.
  • There are 20 modes in total, including 16 static and 4 dynamic changes; The brightness of static color and the speed of dynamic changes are adjustable.
  • Output to RGB three channels, each allows a maximum current of 8A.
  • High power (12-24V,24A) can drive more LED strips.
  • 2 year warranty.


Technical Parameters:

Working temperature -20-60℃
Supply voltage DC5V, 12V~24V optional (specify the required voltage on orders)
0utput 3 channels
Connecting mode common anode
External dimension L130*W64*H24 mm
Packing size L137*W80*H54mm
Net weight 210g
Gross weight 240g
Static power consumption <1W
Output current 8A(each channel) * 3 Channels = 24A totally
Output power 5V:<120W,  12V:<288W,  24V:<576W

Interface Instructions and Wiring Diagram:

IR Receiver of LED Controller

LED Master Control with RJ45 sync interface


There are 2 kinds of wiring diagram depends on your projects

Option 1:

IF your home lighting projects is less than 20m (here for example 5050 60leds/m rgb strips),you just need one this 24A powerful sync controller.

MJJC-SZ600 24A LED Controller Diagram

Optiona 2:

You can use only  one  24 key IR remote to control hundreds of rgb led strip lights,please refere the following solution. This solution even dont need RGB Amplifier,just to realize synchronously control by RJ45 sync interface,save the most of time and spirits,also make the projects more simple and easy.

SZ600 LED Master Controller Parallel Connection
