MJJC-WIFI-V03-wifi-LED-Controller-RGB-CT-DIM-12V-12A

2015 New Wifi LED Controller RGB DIM CT 12V 24V DC 12A

WIFI-LED Controller with RF button remote (Can be connected to Home Router)
WIFI-V03 controller appeared with the installation of controlling software on mobile devices with Android
or IOS system, such as android phone, Iphone, tablet PCs, they can remote control LED lighting products
through Wi-Fi, which makes LED control more intelligent and humanization. One WIFI-V01 controller can be
used as dimmer, CT controller, and RGB controller, only need to select the right control interface in the
software. In addition, this model has DIY function. Users can get any effect they want based on our controlling
software. If you don’t have any mobile devices with the controlling software at hand, you could also use our RF
remote control to control it. This model designed for constant voltage led products, such as led strip, led
modules. For controlling more led products, amplifier is available.



Features
 Support both Wi-Fi control of Apple products (iPod, iPad, Iphone), Android mobile devices like Samsung,
HTC, and RF14keys wireless remote control.
 With the 3-in-1(Dimming, CT, RGB) apple/android software. One device suit to different lighting
application scene.
 Memory function to save scenes anytime anywhere for next play.
 WIFI-V03 is designed for constant voltage led products, working voltage auto fit to DC12-24V.
 Wi-Fi control based on 2.4GHZ frequency, RF remote control based on 433.92MHz.
 2 year warranty.



Technical parameters

Controller

Working temperature -20-60℃ Working voltage DC12~24V
Power consumption <3W Connect method Common anode
WIFI brightness level 100 WIFI speed level 100
brightness level 32 speed level 100
N.W. 150g G.W. 230g
Case dimension L108*W63*H28mm Box dimension L109*W55*H56mm
Output 3 channels Output current ≤4A(each channel)
WIFI frequency 2.4G RF frequency 433.92Mhz
Output gray scale 256 Memory function support
Receiving sensitivity 802.11b:DSSS(-5dBm)  802.11b:CCK(-10dBm)  802.11g:OFDM(-15dBm)
Output power 12V: ≤144W(3CH)       24V: ≤288W(3CH)

RF remote control

Working temperature -20℃~60℃ Supply voltage DC3V(AAA*2)
Standby current <18uA Working current <25mA
Standby power 54uW Working power 75mW
Net weight 65g RF frequency 433.92MHz
External dimension L150*W40*H20 mm RF distance ≤20m





Software

Name Free color V2.0 Platform Android 2.1 or above,IOS 4.3 or above



Size Android(661KB) , IOS(1.4MB)
Category Communication Language English


Controller operation illustration

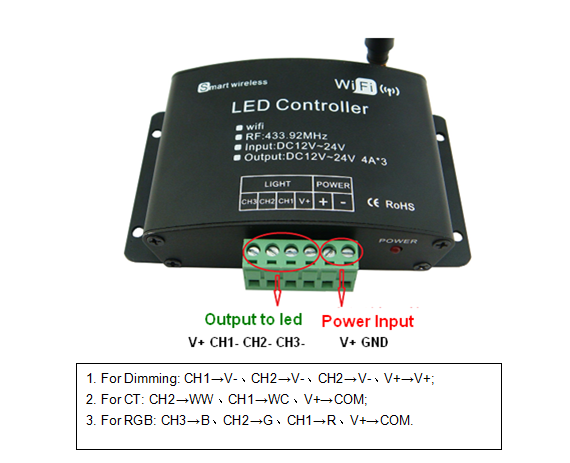

  1. Connector illustration



how to connect wifi to led strip light



  1. Working state instruction
Indicator light Function table
Power Power indicator light, long-time bright shows power supply is working normally
Wifi Long-time bright in normally connection, when receives wifi signal data flicker.
RF Flickering when receives correct control signal from wifi device or RF remote control; and die out in free time.

RESET key:Press and hold at least 5 seconds, WIFI previously set data will be cleared to return to the factory default.



  • Controller connection



(1) RGB connection::connect CH3→B、CH2→G、CH1→R、V+→COM;

RGB Wifi LED Controller connection

(2)CCT connection:connect CH2→WC、CH1→WW、V+→COM;

Connect to Warm White + Cool White LED Strip Light

Connect to Warm White + Cool White LED Strip Light



(3)DIM connection:connect CH1→V-、CH2→V-、CH2→V-、V+→V+;

Connect with Single Color LED Strip Lights

Connect with Single Color LED Strip Lights





  1. RGB remote control operation illustration

Adopt RF remote technology, 14 buttons in total.

1) The function of buttons for RGB as below:

New Designed RF Remote

New Designed RF Remote



 Name of key Function description
on Turn on the controller output
off Turn off the controller output
Dynamic mode+ For dynamic mode selection(9-17), each time pressing dynamic mode +1
Dynamic mode- For dynamic mode selection(9-17), each time pressing dynamic mode -1
Static mode+ For static color selection(1-7), each time pressing static mode+1
Static mode- For static color selection(1-7), each time pressing static mode-1
White color White color hot key(mode 8)
100% brightness press this key goes to 100% brightness for the present color
Brightness+ Each time pressing brightness +1, 256 levels in total, long-pressing can get fast adjustment
Brightness- Each time pressing brightness -1, 256 levels in total, long-pressing can get fast adjustment
Speed+ Each time pressing speed +1, 100 levels in total, long-pressing can get fast adjustment
Speed- Each time pressing speed -1, 100 levels in total, long-pressing can get fast adjustment
Automatic cycle All dynamic modes are automatically circulating in order









Standard color changes as follows:

No Patterns Remarks
1 Static red Brightness is adjustable, speed is unadjustable
2 Static green
3 Static blue
4 Static orange
5 Static yellow
6 Static purple
7 Static cyan
8 Static white
9 White flash Speed / brightness are adjustable
10 White breathe Speed is adjustable, brightness is unadjustable
11 3 color jumpy Speed / brightness are adjustable
12 7 color jumpy
13 3 color fade Speed is adjustable, brightness is unadjustable
14 7 color fade
15 R/G cross fade
16 R/B cross fade
17 G/B cross fade
18 9-17Autonamic cycle
