MJJC-SZ600-RGBW-RF24K RGB LED Controller

RF RGBW 4 Channels LED Synchronous Controller 12-24V DC 24A

  • 6A/Channel * 4Channels
  • With RJ45 Sync interface
  • New 24 Keys Remote Control
  • 2 Years’ warranty
  • CE/RoHS

Model: MJJC-SZ600-RGBW-24K

RF 24 key Led RGBW Controller adopts the most advanced PWM (Pulse Width Modulation) digital technology with 4 channels constant voltage led RGBW controller. This model designed for RGBW/Y led products. Adopts RF 24 key remote, RGB and W each have independently control area without interference. Especially, it is designed with synchronization function. It is convenient to use RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands of meters led strips. In theory, they can be connected numerous.


Technical Parameters:

Working temperature -20-60℃
Supply voltage DC12V~24V
0utput 4 channels
Output gray 256 levels (with continuous reception)
Connecting mode common anode
External dimension L91*W88*H24 mm
Packing size L106*W106*H66 mm
Net weight 180g
Gross weight 240g
Output current <6A(each channel)
Output power 12V:288W; 24V: 576W
RF frequency 433.92MHz


Product Features:

Designed for RGBW constant voltage LED lights, Max.output:4*6A.

Working voltage DC12-24V, it can be universal in this range.

Adopts PWM digital technology, signal frequency: 400Hz.

Multiple controllers can work synchronically when connected by network cable through the RJ45 connector, the network cable between 2 ports up to 80 meters.

RF 24-key wireless remote, RF frequency: 433.92MHz.

“W” channel can be turn on/off and adjust the brightness independently, and 3 brightness level hot keys.

13 kind modes for RGB part, including 9 static colors and 4 dynamic changes; the brightness of static color and the speed of dynamic changes are adjustable.

Warranty of this product is one year, exclude the artificial situation of damaged or overload working.



RGBW LED Controller Receiver

RGBW LED Controller Receiver

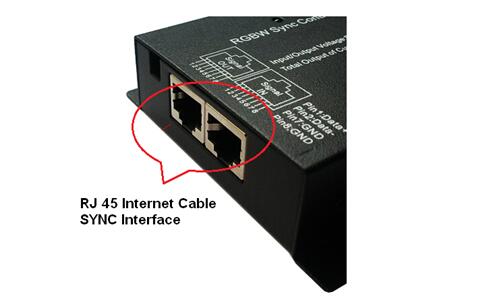

RJ45 sync port for rgbw led controllerRJ45 Internet Sync port to make thousands of meters RGBW LED Strip Lights working at the same time.  Controlled by only one remote.

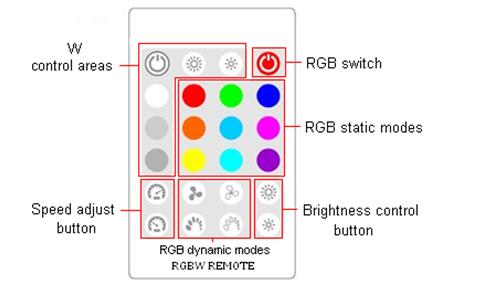

Adopt RF wireless 24-key remote control, function of each button as below:

rgbw led remote control

Mode Details:

W on/off W brightness + W brightness – RGB on/off
100% Static red Static green Static blue
50% Static orange Static sky blue Static carmine
25% Static yellow Static cyan Static purple
Speed + Three colors jump Three colors gradually change brightness +
Speed – Seven colors jumping change Seven colors gradually change brightness –

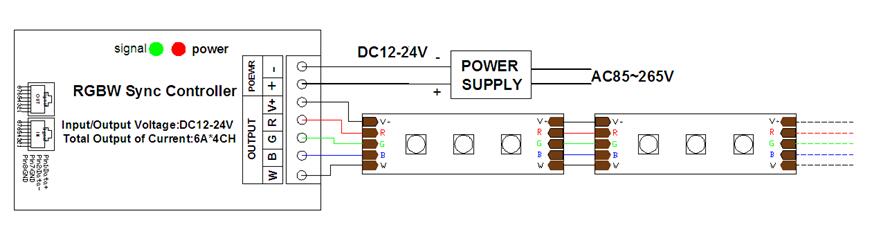

Typical application independently:

RGB LED Sync Controller
